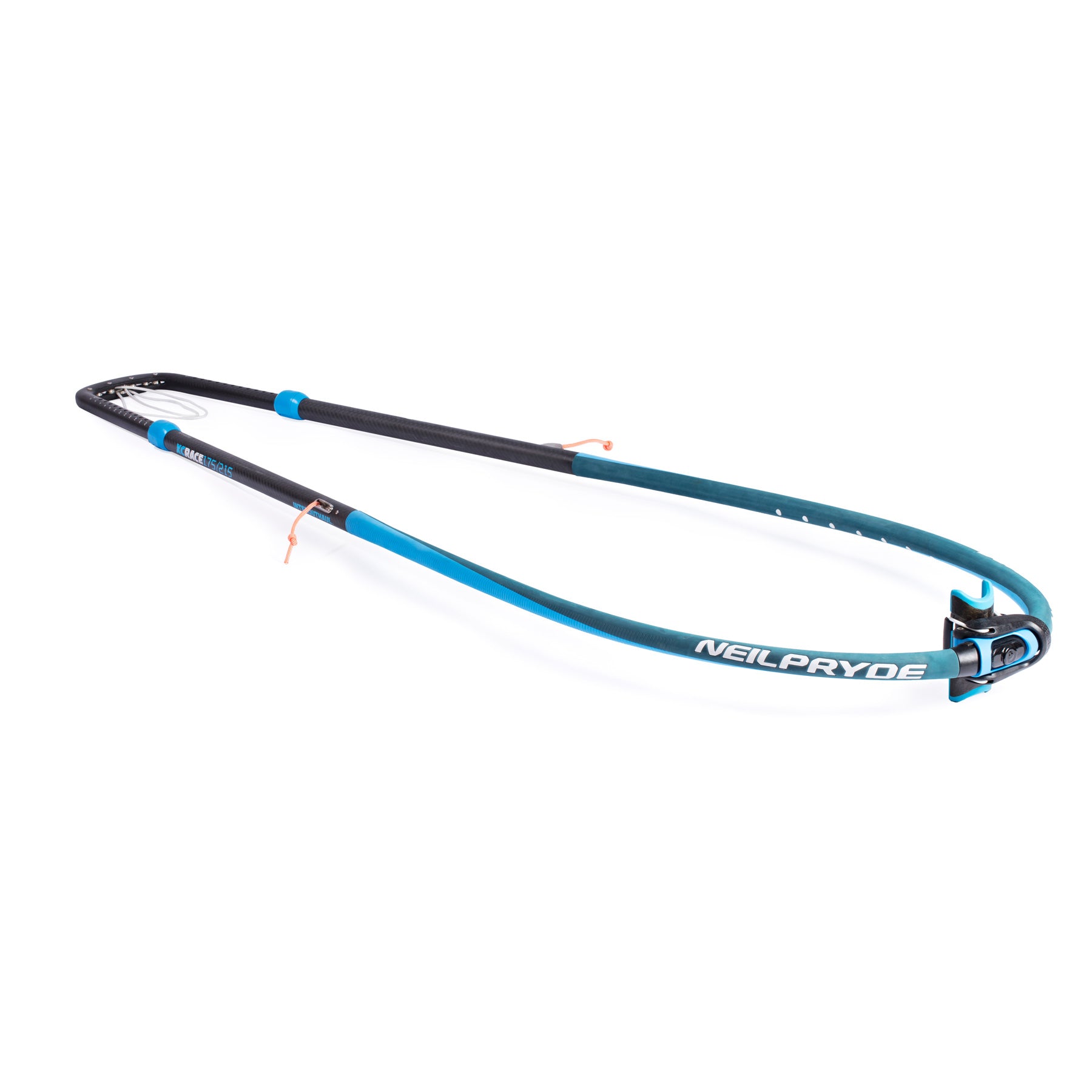

XC RACE CARBON INTEROUTHAUL
TECH HIGHLIGHTS
VT JOINT
Increases contact area from the boom attachment to the mast.
It can be used on any standard diameter mast.
Reduces chance of point loading.
Minimises play between the boom and mast connection.
Allows easy adjustment of boom height.

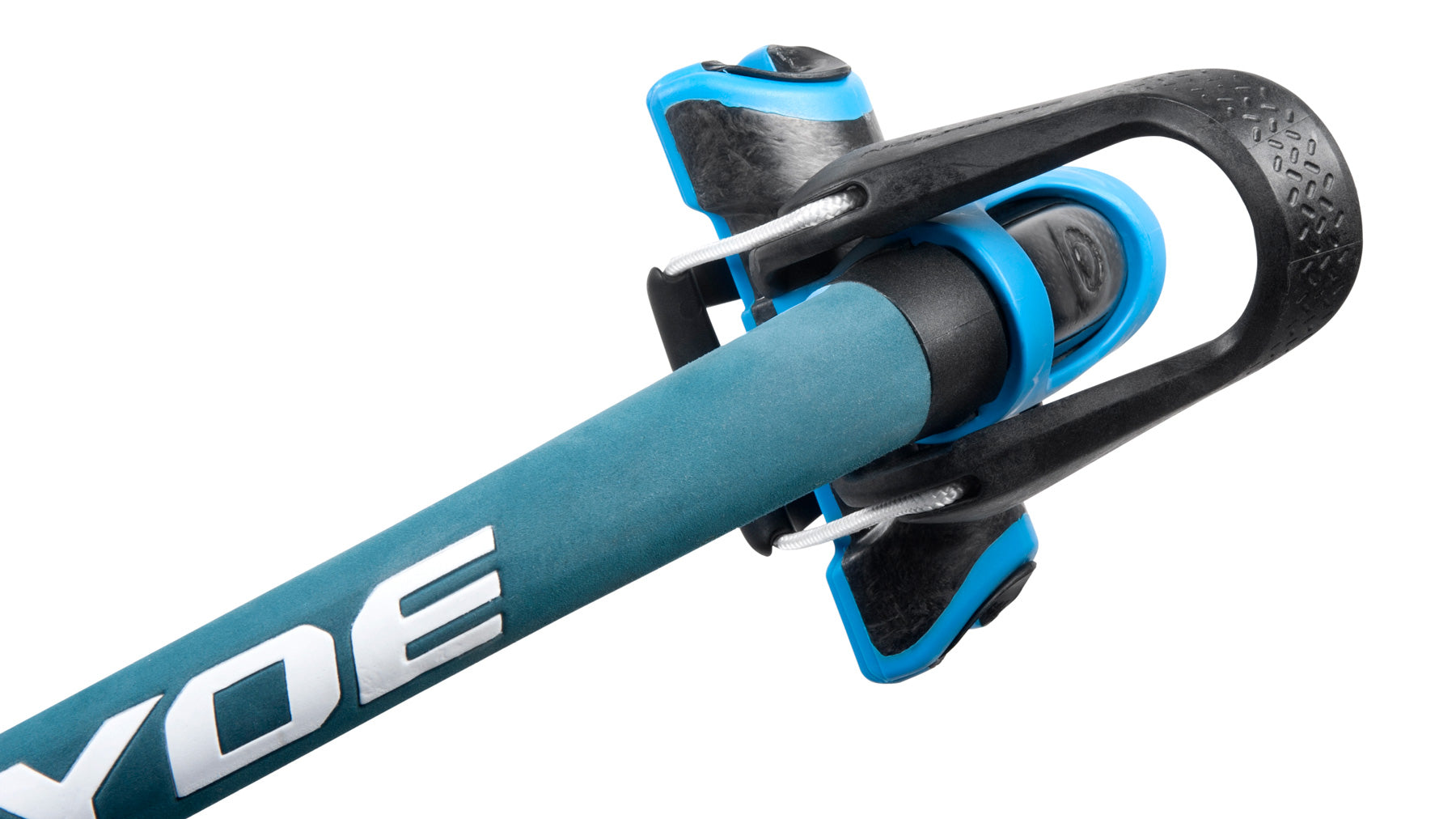

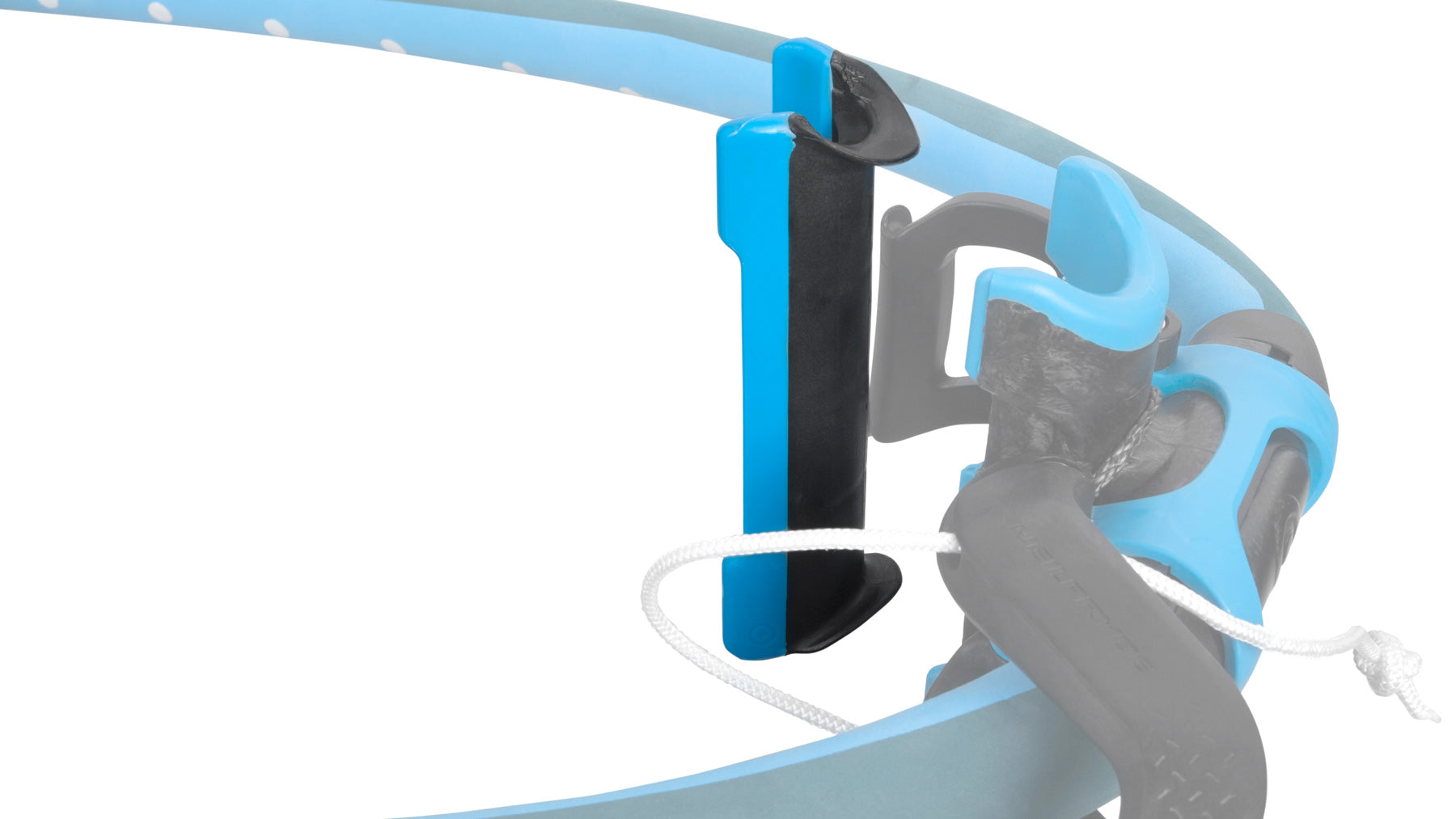

MAST CUP
The mast cup provides 2 points of contact between the cup and the mast, creating a tight connection and ensuring great transmission of power.
The V-Shape accommodates variation in standard mast diameters.
Slightly thinner masts sit further into the V, while wider ones sit further out. The VT-Joint is standard on all NeilPryde booms. Additionally, it comes with an oversized forged carbon mast cup material tailored to suit each XC boom.

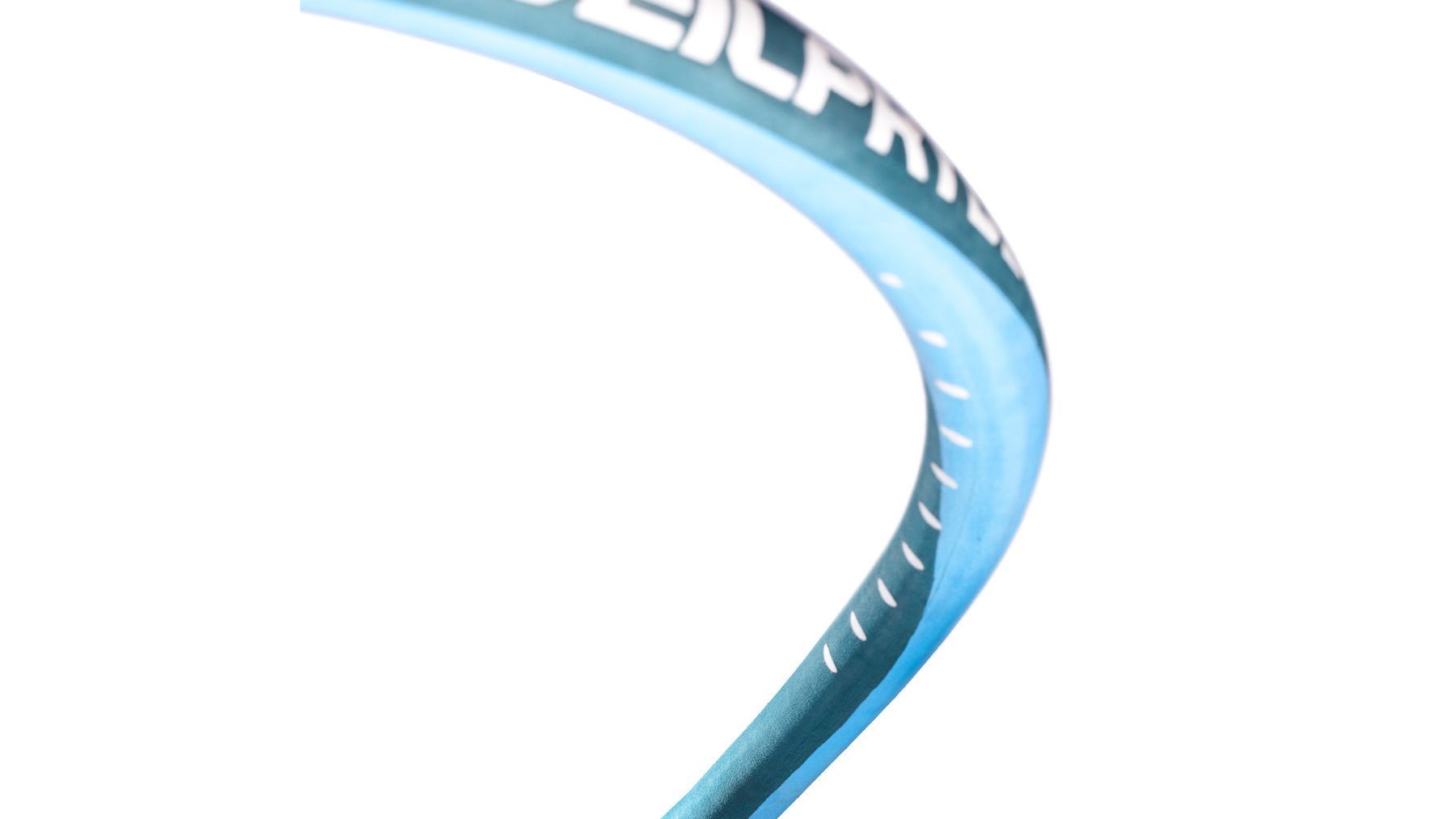

OVAL DIAMETER SHAPE
Replicates the natural shape of your palms and fingers offering great comfort and grip strength to extend your riding sessions. The oval shape also increases the stiffness of the boom arms by increasing torsional rigidity.

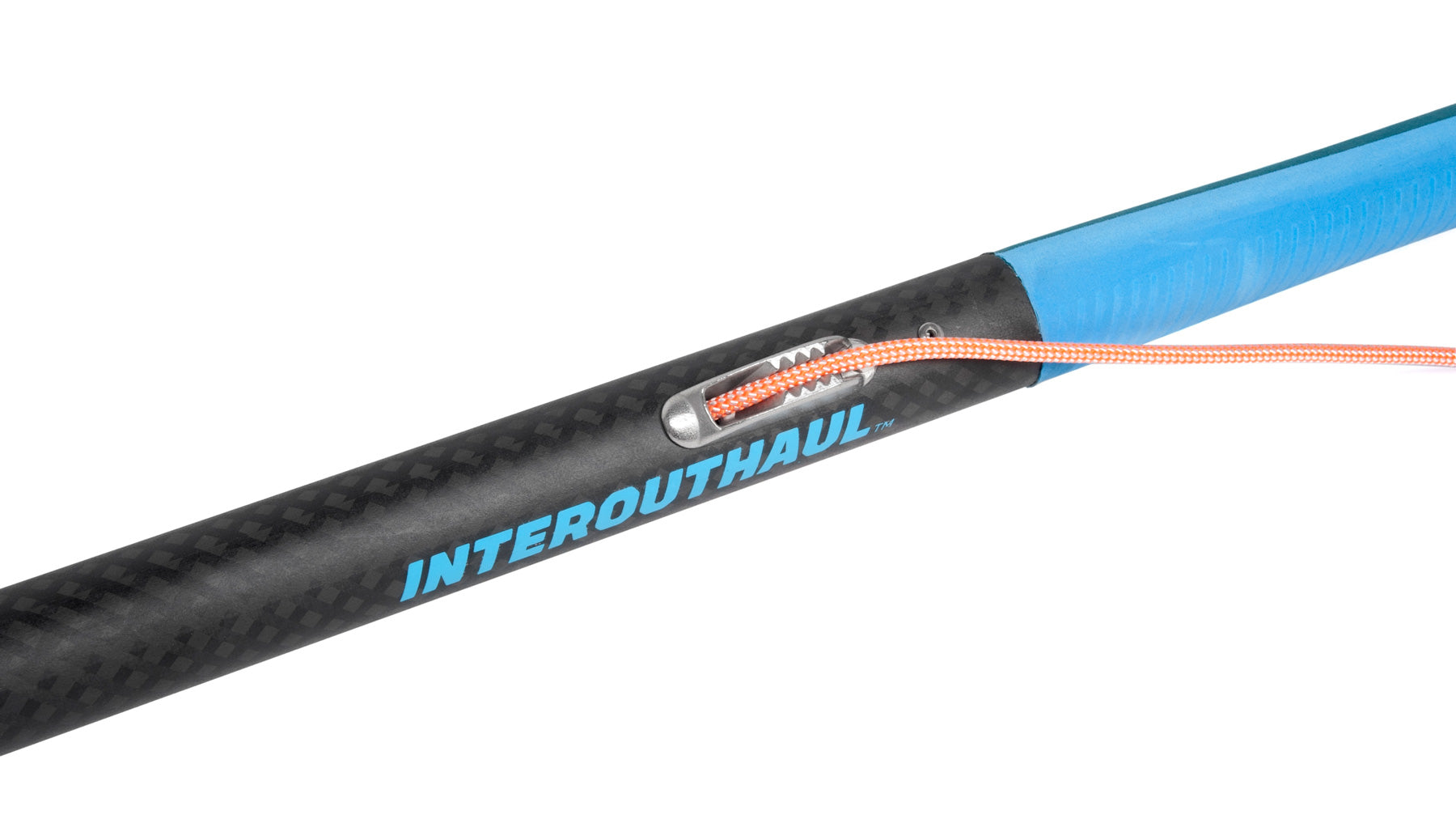

INTEGRATED INTEROUTHAUL SYSTEM
Designed for high performance racing. As the trim- lines slide inside the boom arms, offering maximum comfort while racing as there are no more disturbing ropes in your way. Spectra inhaul rope.

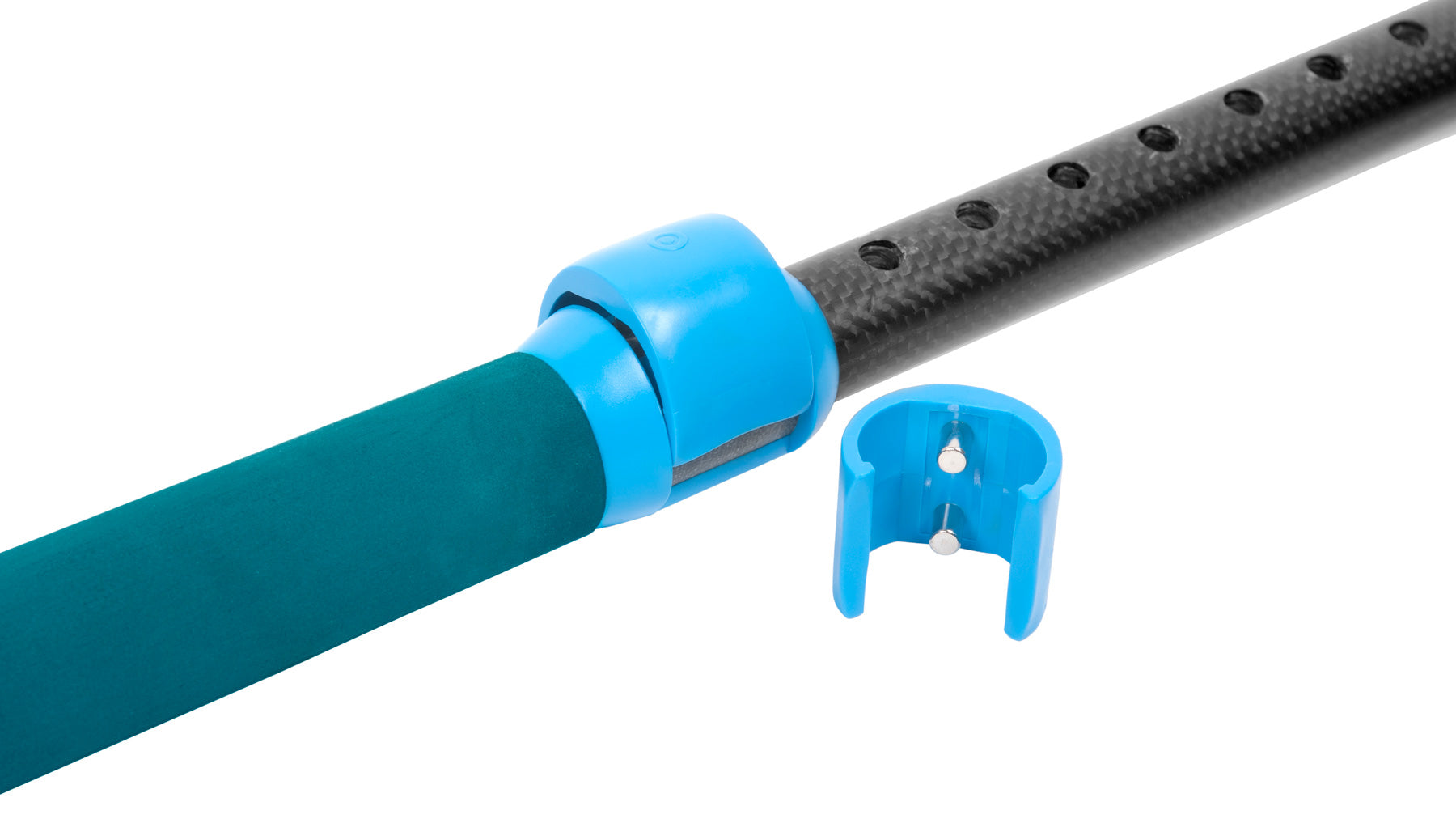

TRIM-PIN LEVER DESIGN
Double insert with an easy locking and opening lever. It provides ease of tail adjustment, optimal load distribution and a stiff connection between the boom body and tail end.

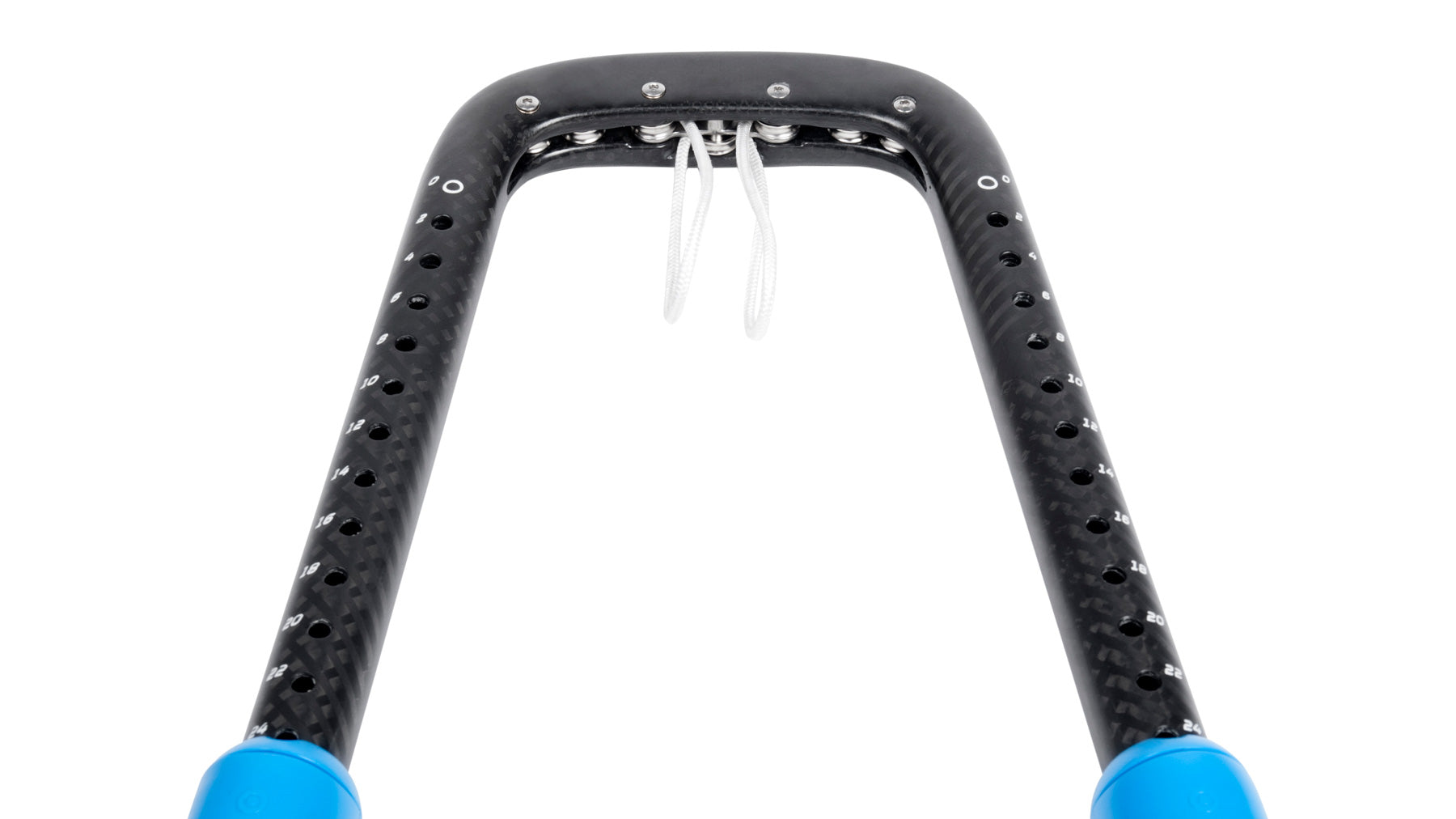

XC RACE TAIL
Monocoque custom pre-preg carbon tail extension. Featuring a hollow box section tubes/square profiles. Structured with 7 pulleys for ease of use. Compatible with the Interouthaul trimming whilst also featuring a cleat system for fixed outhaul set up.

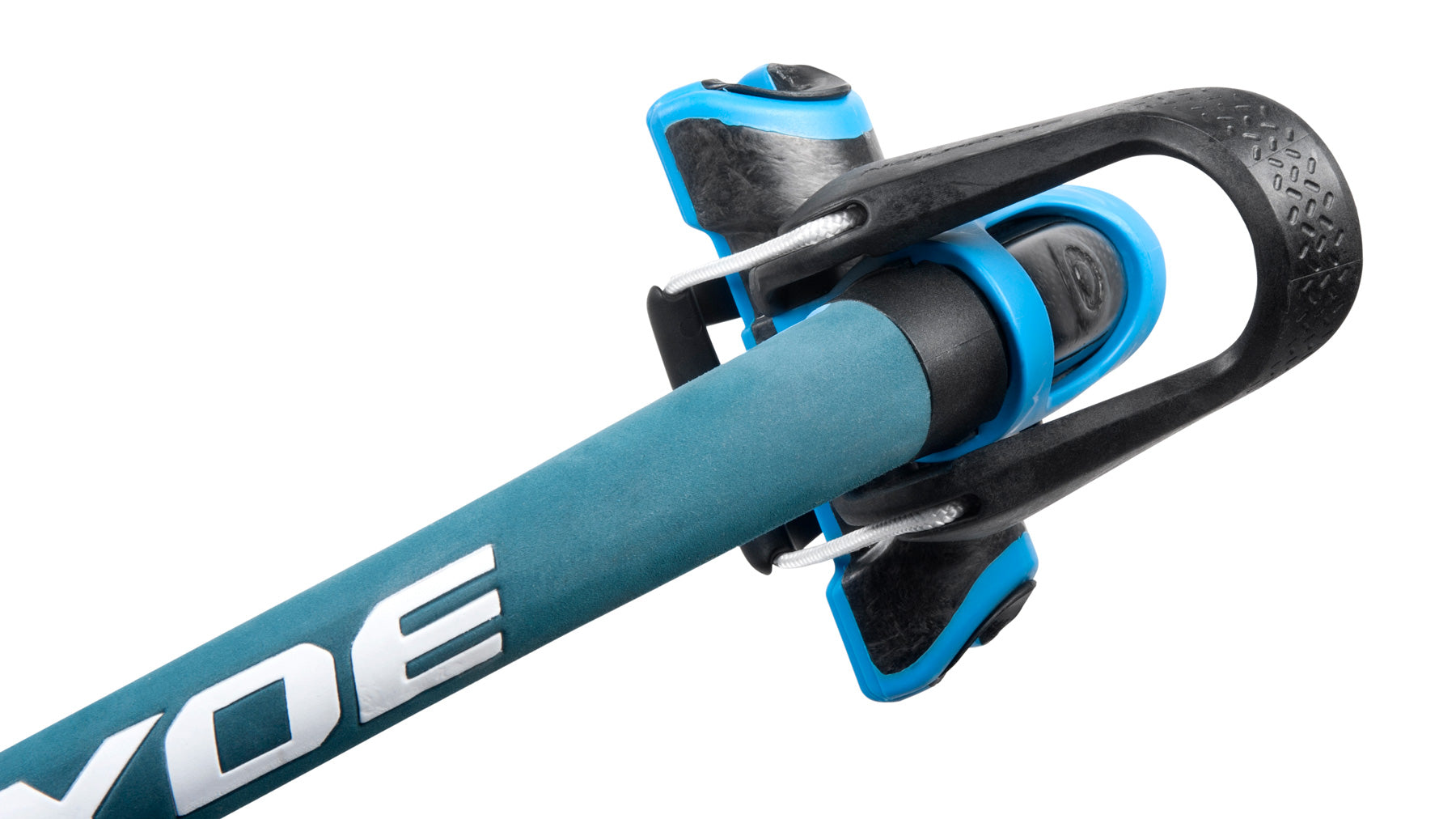

INTEGRATED BOOM LEVER
Integrated boom lever for easy locking and opening. Designed with a reduced surface area and lighter weight.
Product specification
Carbon Boom Comparison
175-215
200-250
175-225
140-190
150-200
Oval shape H 28mm - W 30mm
Oval shape H 26.5m - W 28.5mm
25mm
No
Yes
Yes
Yes
No
No
