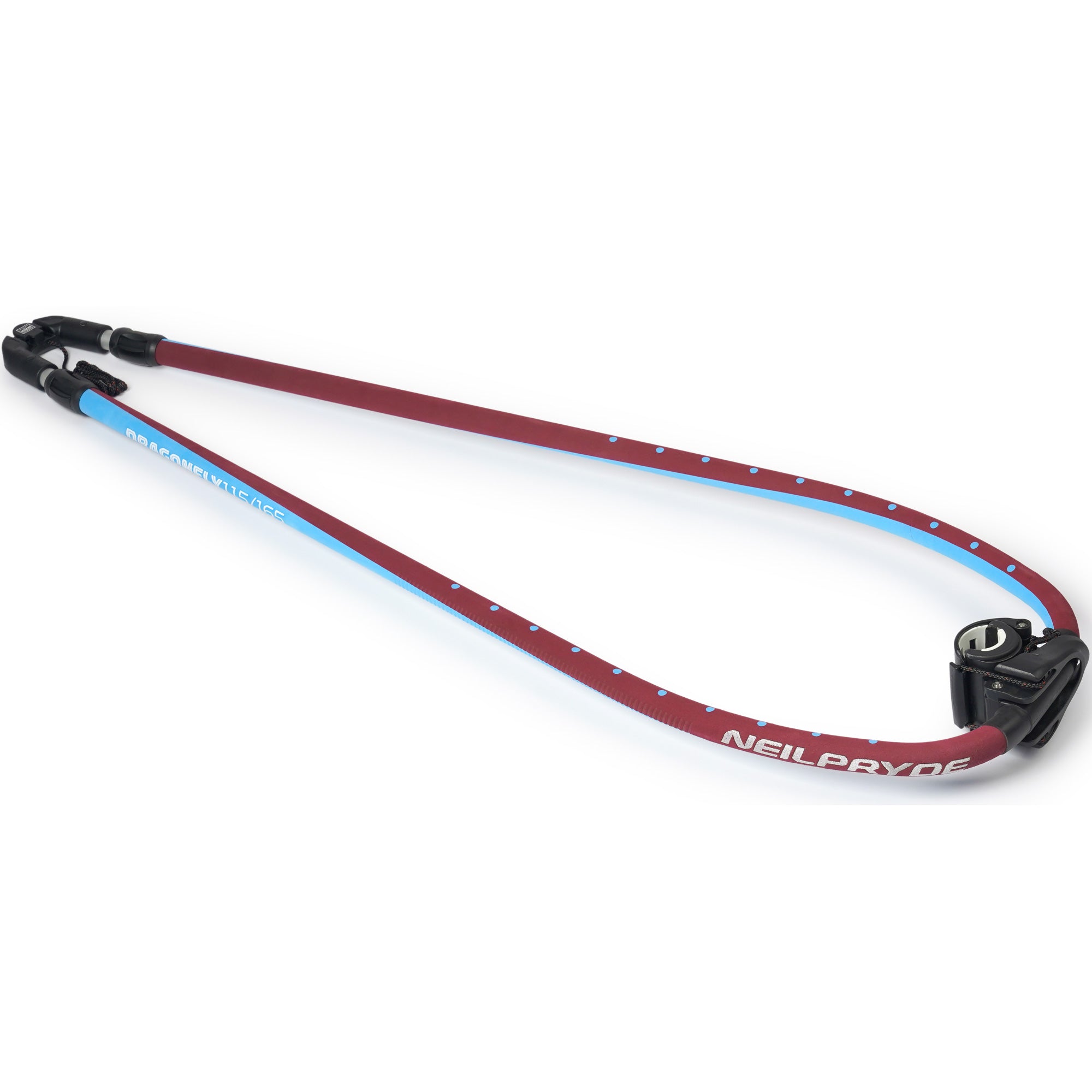

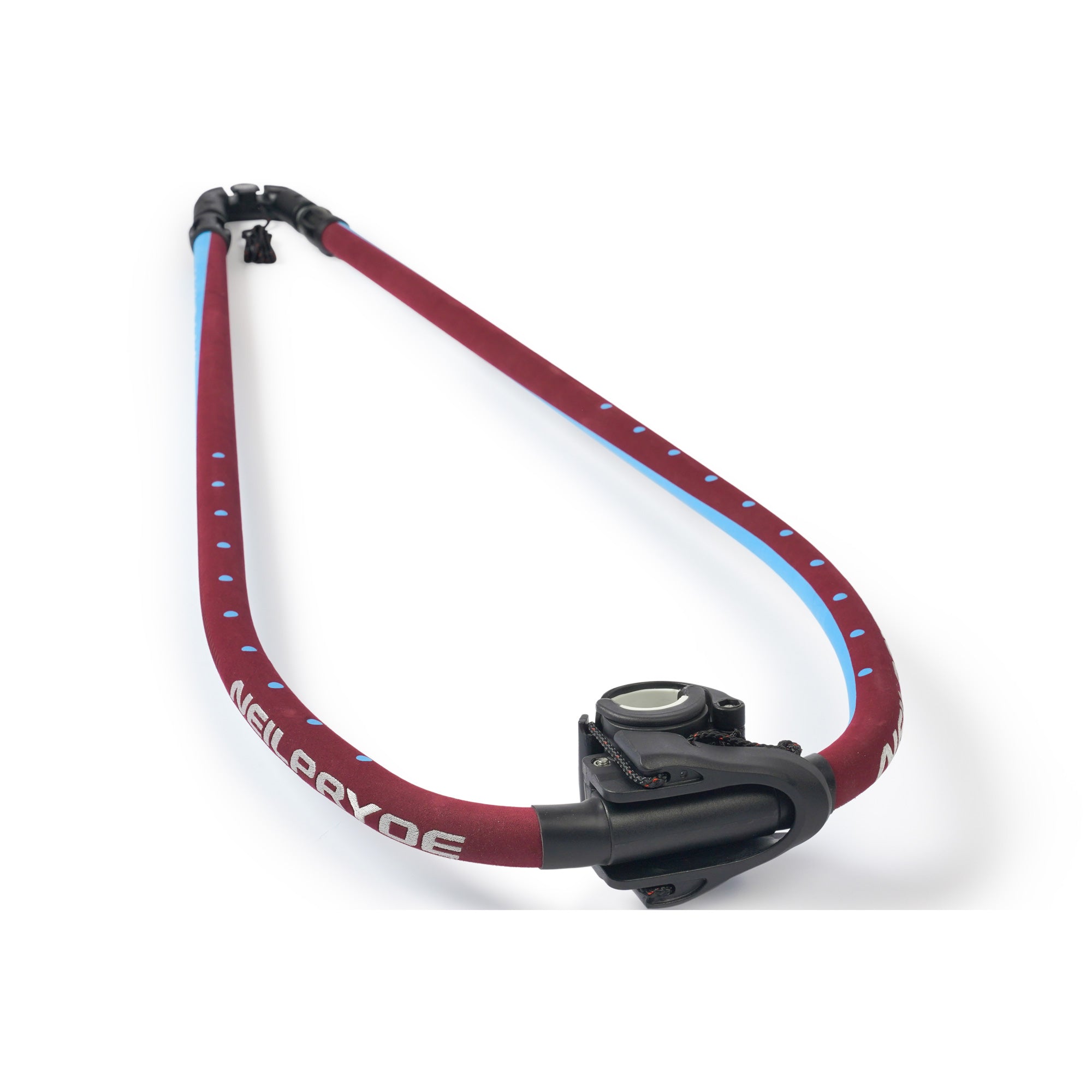

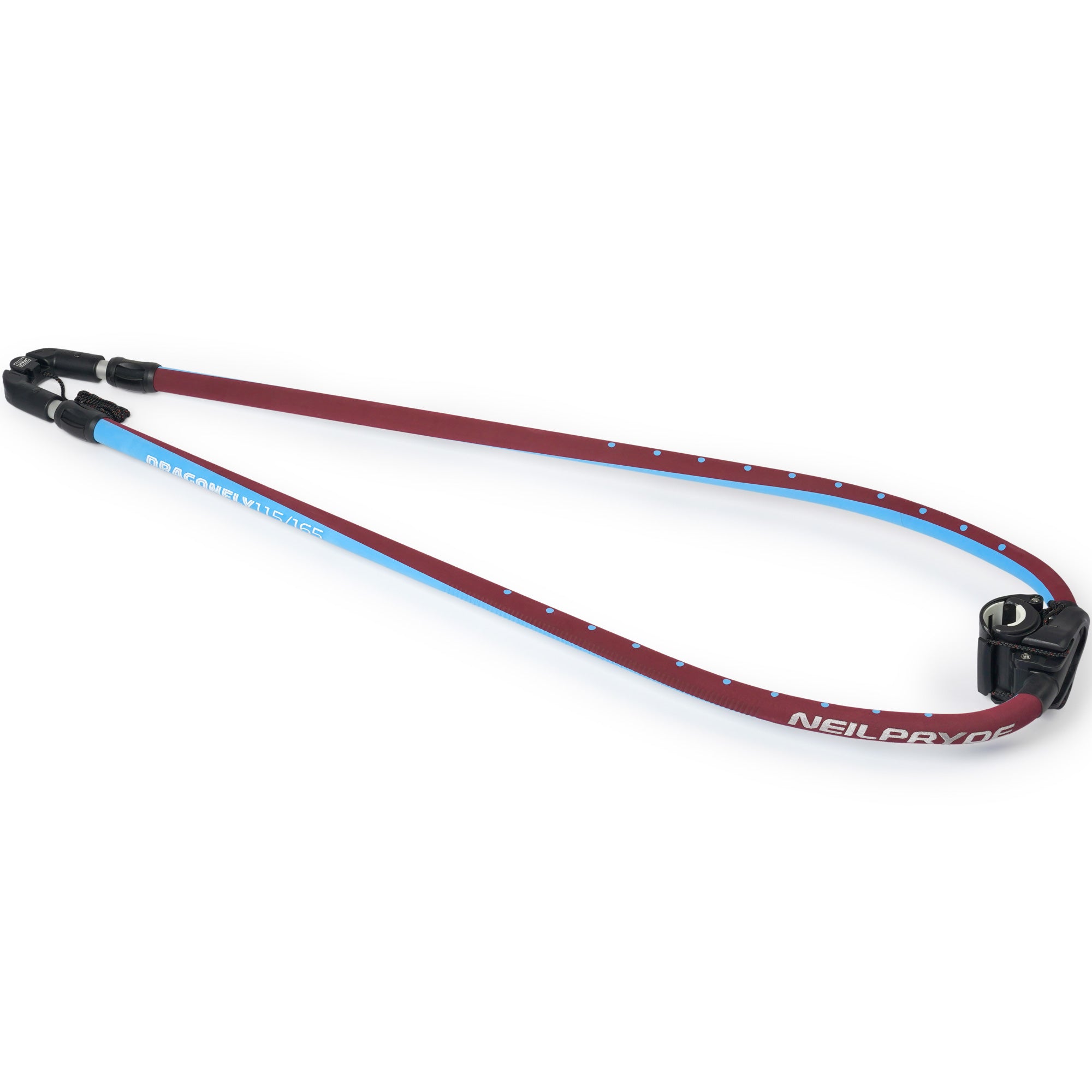

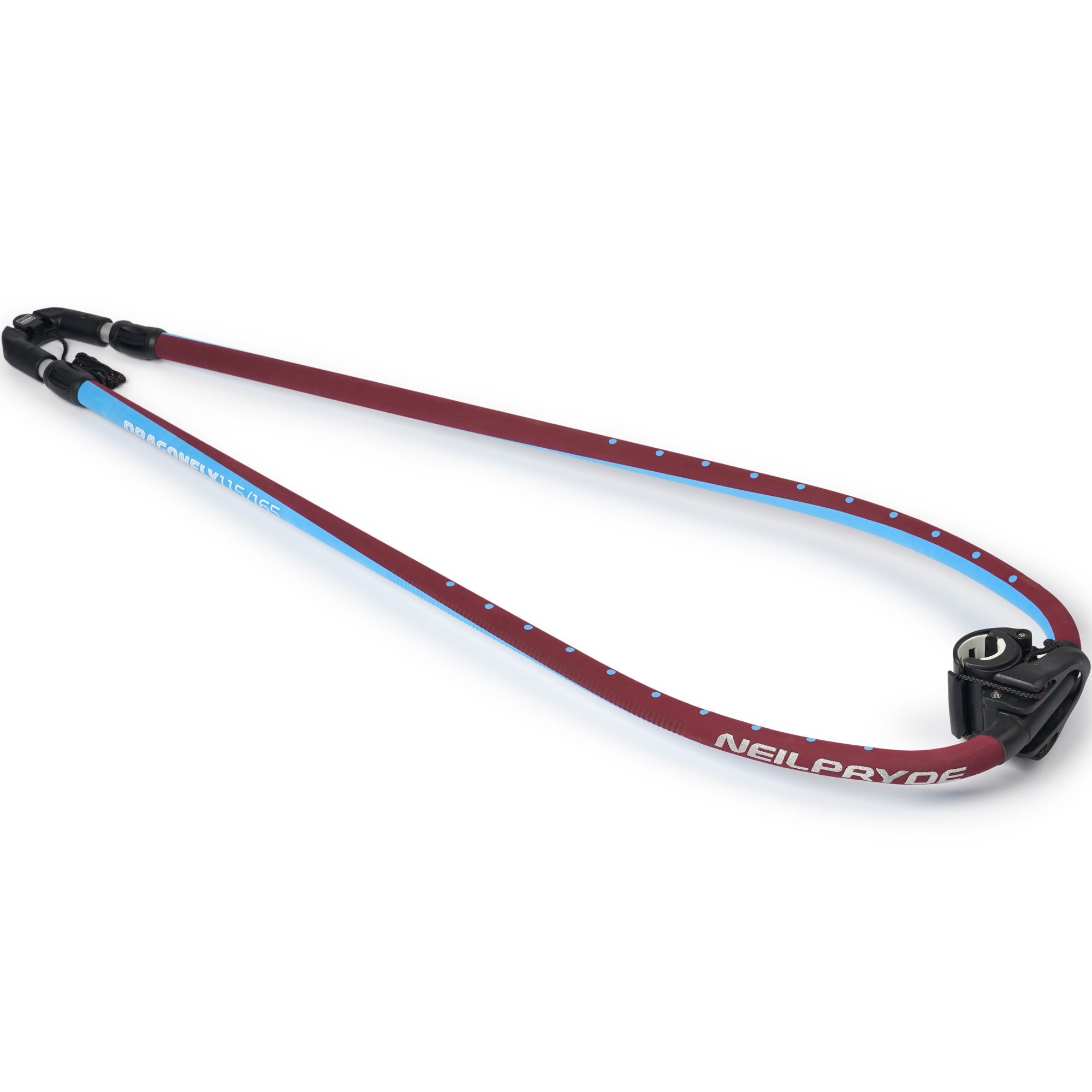

Dragonfly Aluminum Boom

Booms

With a special thin grip this boom is perfectly suited for small hands with big ambitions. This boom has a new school outline which is simply scaled down to ensure the Dragonfly rig works in perfect synergy.

With a special thin grip this boom is perfectly suited for small hands with big ambitions. This boom has a new school outline which is simply scaled down to ensure the Dragonfly rig works in perfect synergy.

Dragonfly Boom Specs



Length/cm Diameter/mm Mast Shim Integrated Adjust Weight/Kg Code
100-150 28 ✓ - 1.66 RBXDFE000STD100

Highlights

INTEGRATED INTEROUTHAUL SYSTEM is designed for high performance racing. As the trim-lines slide inside the boom arms, offering maximum comfort while racing as there are no more disturbing ropes in your way. Spectra inhaul rope.

OVAL DIAMETER SHAPE fort and grip strength to extend your riding sessions. The oval shape also increases the stiffness of the boom arms by increasing torsional rigidity.

Features

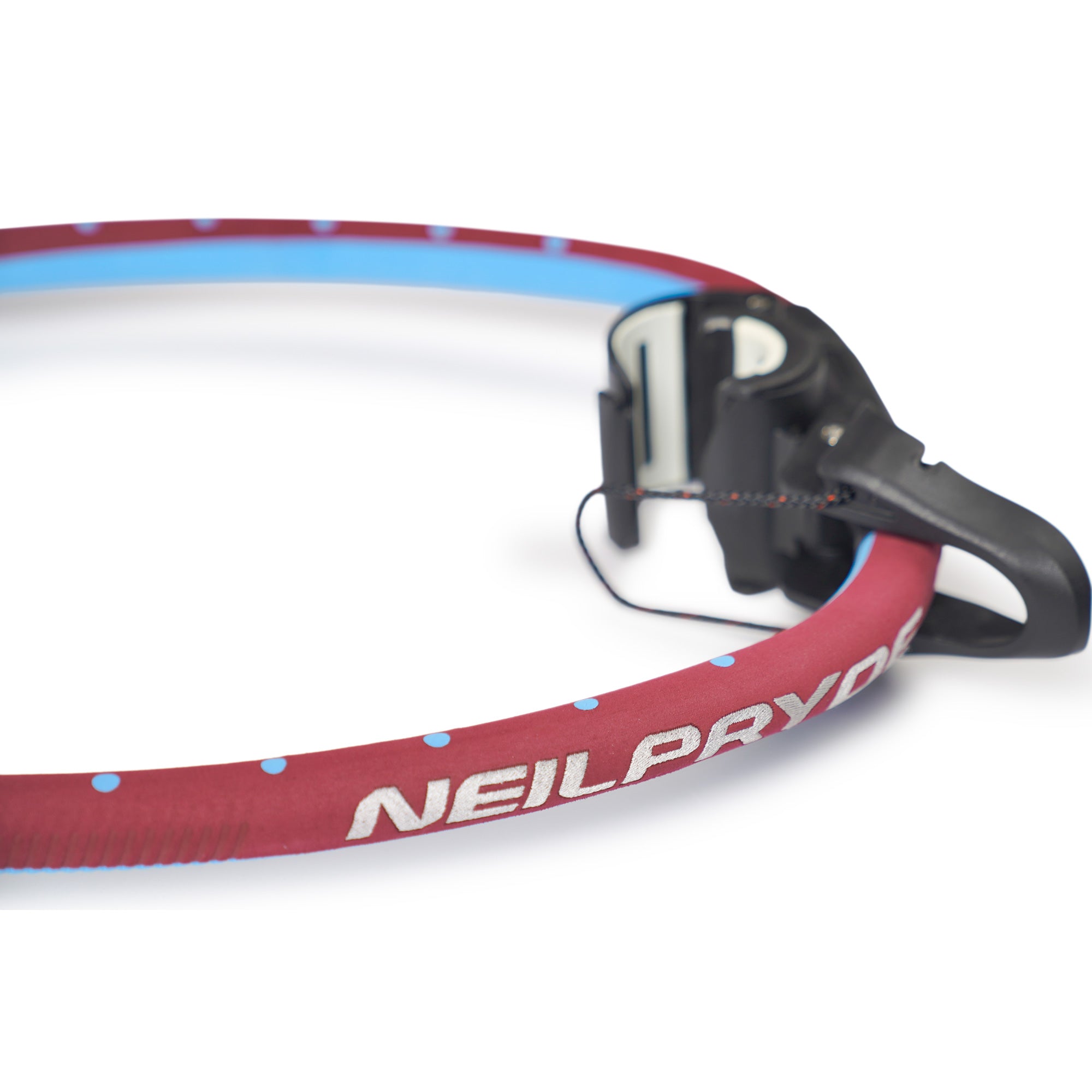

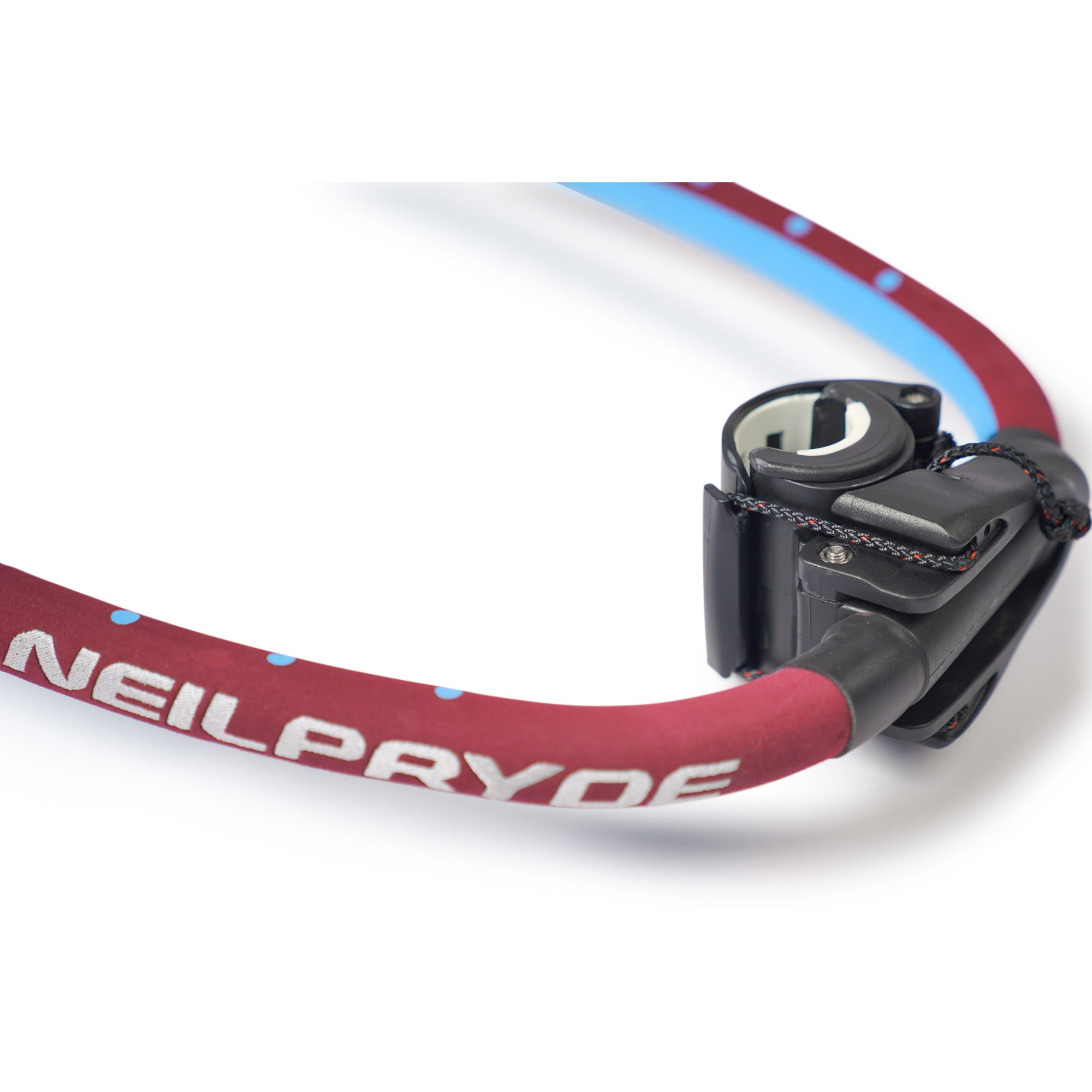

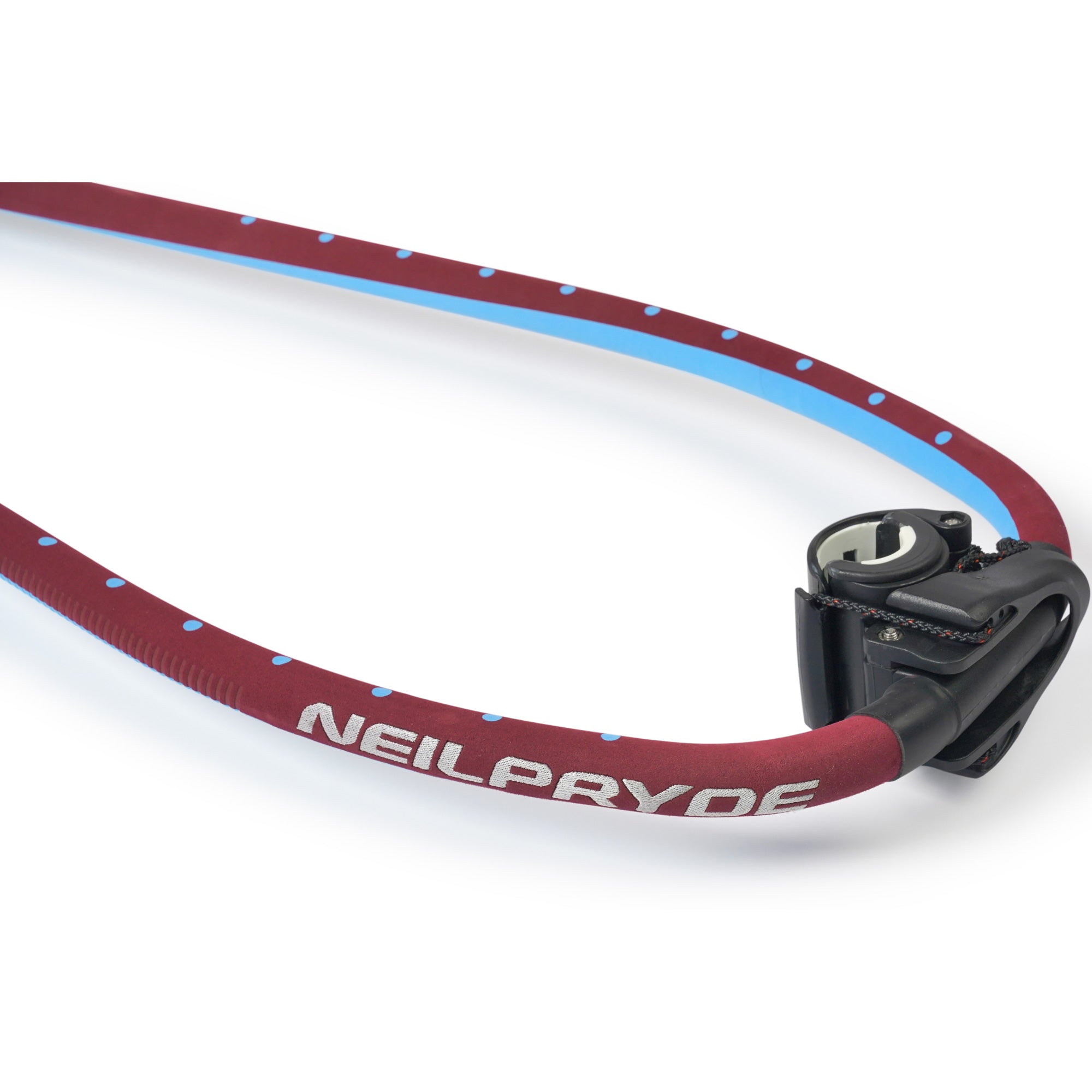

VT-JOINT, FORGED CARBON: The NeilPryde VT-Joint provides a stiff boom connection and a more responsive transmission of the sail’s power than any other system used in the market. KEY BENEFITS: > Increases contact area from the boom attachment to the mast. > It can be used on any standard diameter mast. > Reduces chance of point loading. > Minimises ‘play’ between the boom and mast connection. > Allows easy adjustment of boom height. The mast cup provides 2 points of contact between the cup and the mast, creating s tight connection and a great transmission of power. The V-Shape accommodates variation in standard mast diameters. Slightly thinner masts simply sit further into the V while fatter ones sit lower down. The VT-Joint is standard on all NeilPryde booms with an oversized ‘Forged carbon’ mast cup material tailored to suit each XC boom.

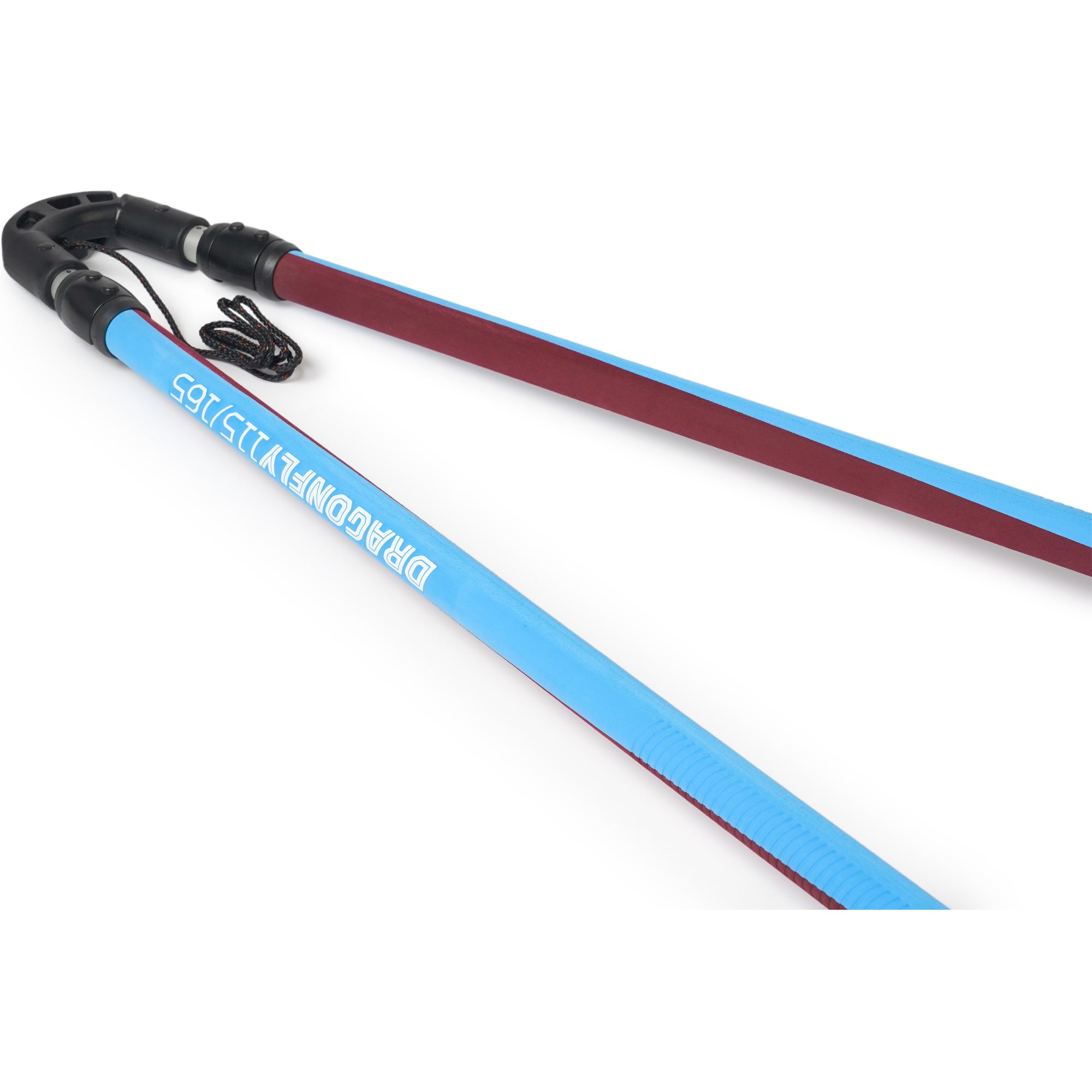

XC RACE TAIL: Monocoque custom pre-preg carbon tail extension. Featuring a hollow box section tubes / square profiles. Structured with 7 pulleys for ease of use. Compatible with the Interouthaul trimming whilst also featuring a cleat system for fixed outhaul set up.

TWIN-PIN TRIM DESIGN: (Double insert push pin button). They provide ease of tail adjustment, optimal load distribution and a stiff connection between the boom body and tail end.

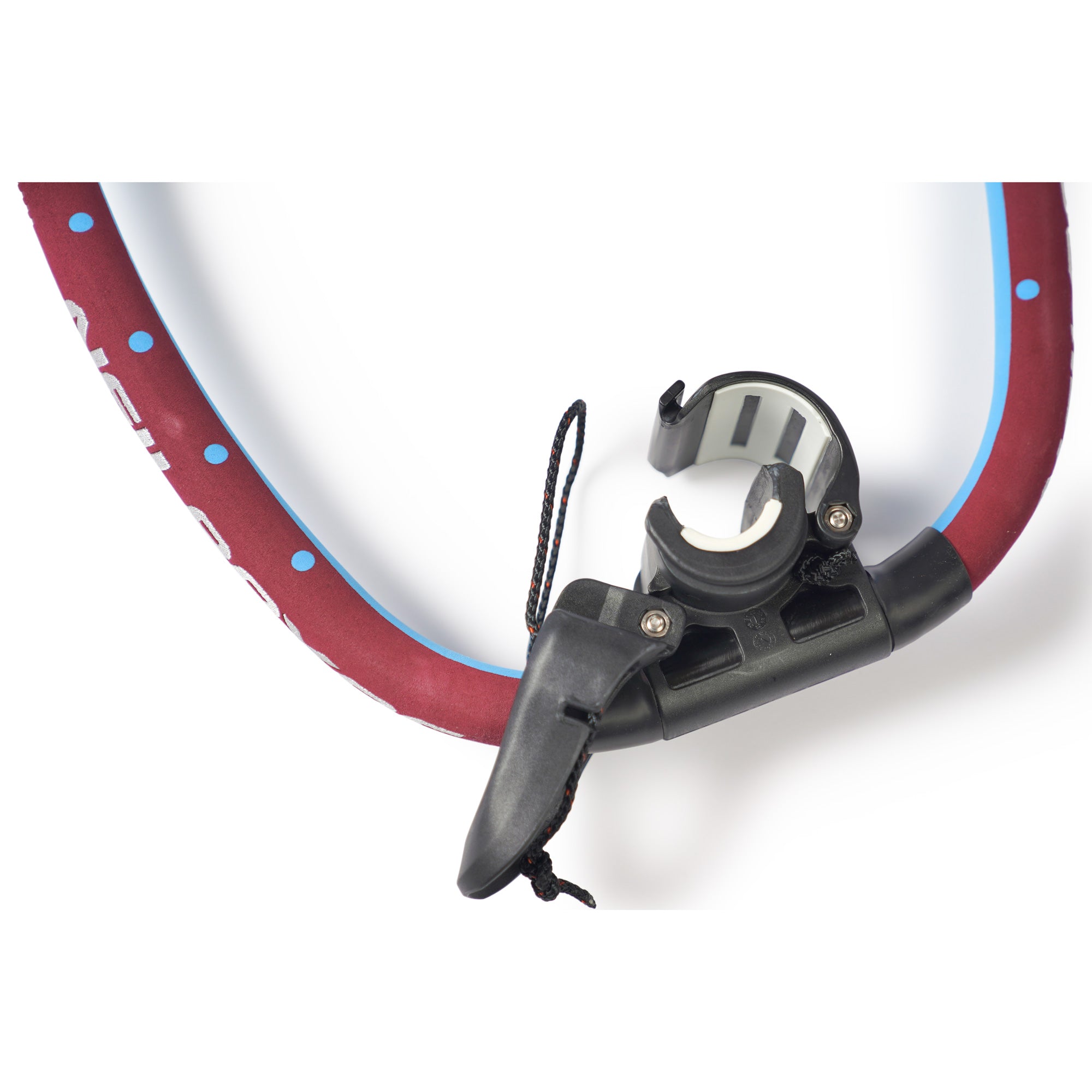

LEVER: Integrated boom lever for easy locking and opening. Designed with a reduced surface area and lighter weight.

    DYNEEMA ROPE: Our integrated boom lever comes with high quality Dyneema rope.



      EVA GRIP: Embossed 3D structure on the outside of the boom to offer more grip, comfort and greater durability. Harness line position indicators.
