FOILING

Foiling is gaining more and more traction amongst all kinds of water sports, e.g. windsurfing, surfing, SUPing, Wake surfing or Kitesurfing. Foiling is more and more in trend, from beginner to expert as well as across genders.

WHAT MAKES FOILING SO EXCITING

A foil will help to lift you above the water and let you float over it. But how is this possible?

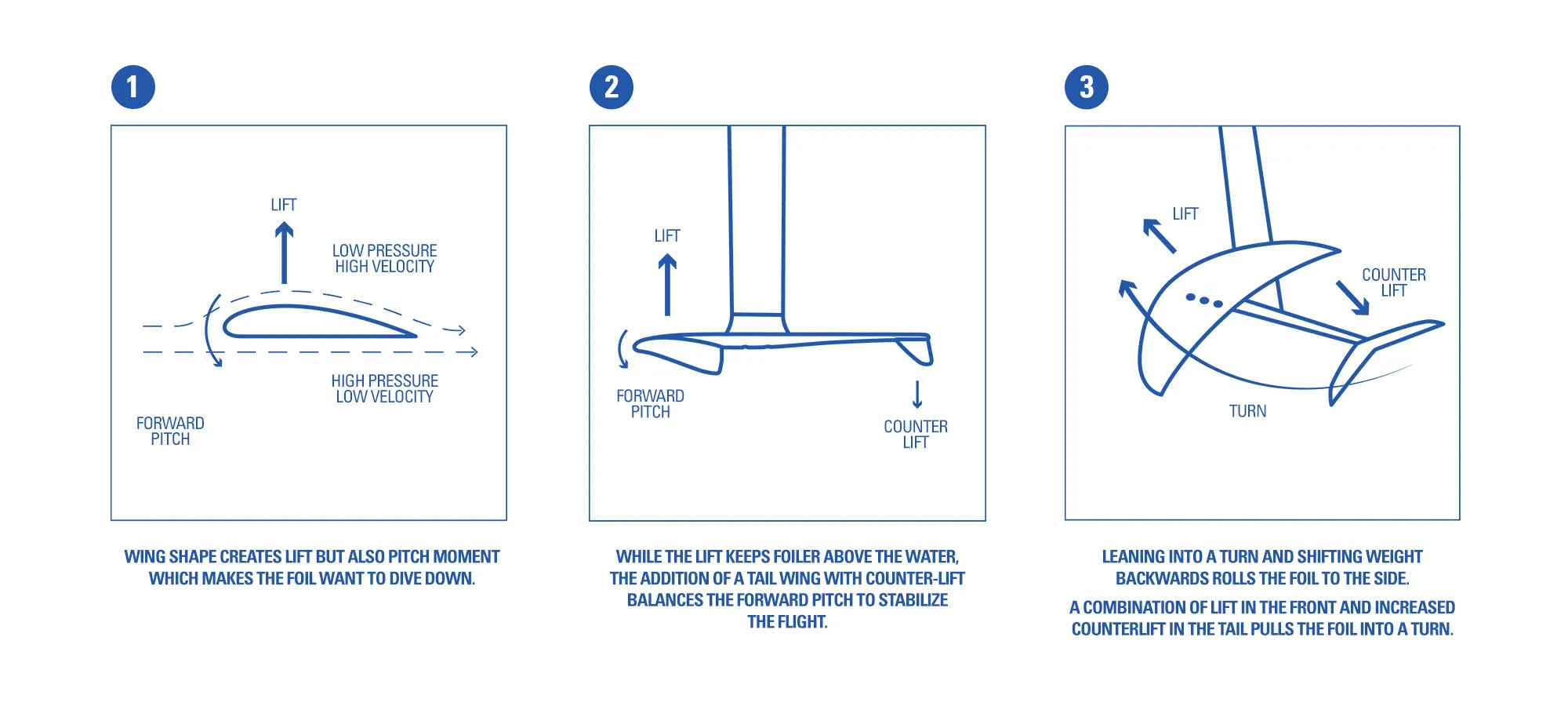

We have visualized the physics behind foiling in the above graphic.

The specific shape of the wing has the effect that water travels faster over the top surface than the bottom one, similar to how airplane wings work. Physics dictates that the faster velocity over the top of the wing leads to a lower pressure.

Simultaneously, with higher pressure on the bottom surface of the wing, an upward force is produced, which in turn lifts the boat's hull out of the water.

TECHNICAL INFO

Our foils are made of high pressure molded prepreg carbon or aluminum - what is the difference?

Carbon fibres will offer a much higher stiffness-to-weight ratio compared to aluminum.

It allows for reduced profile sizes, e.g. having a much thinner profile mast that further reduces drag while improving stiffness.

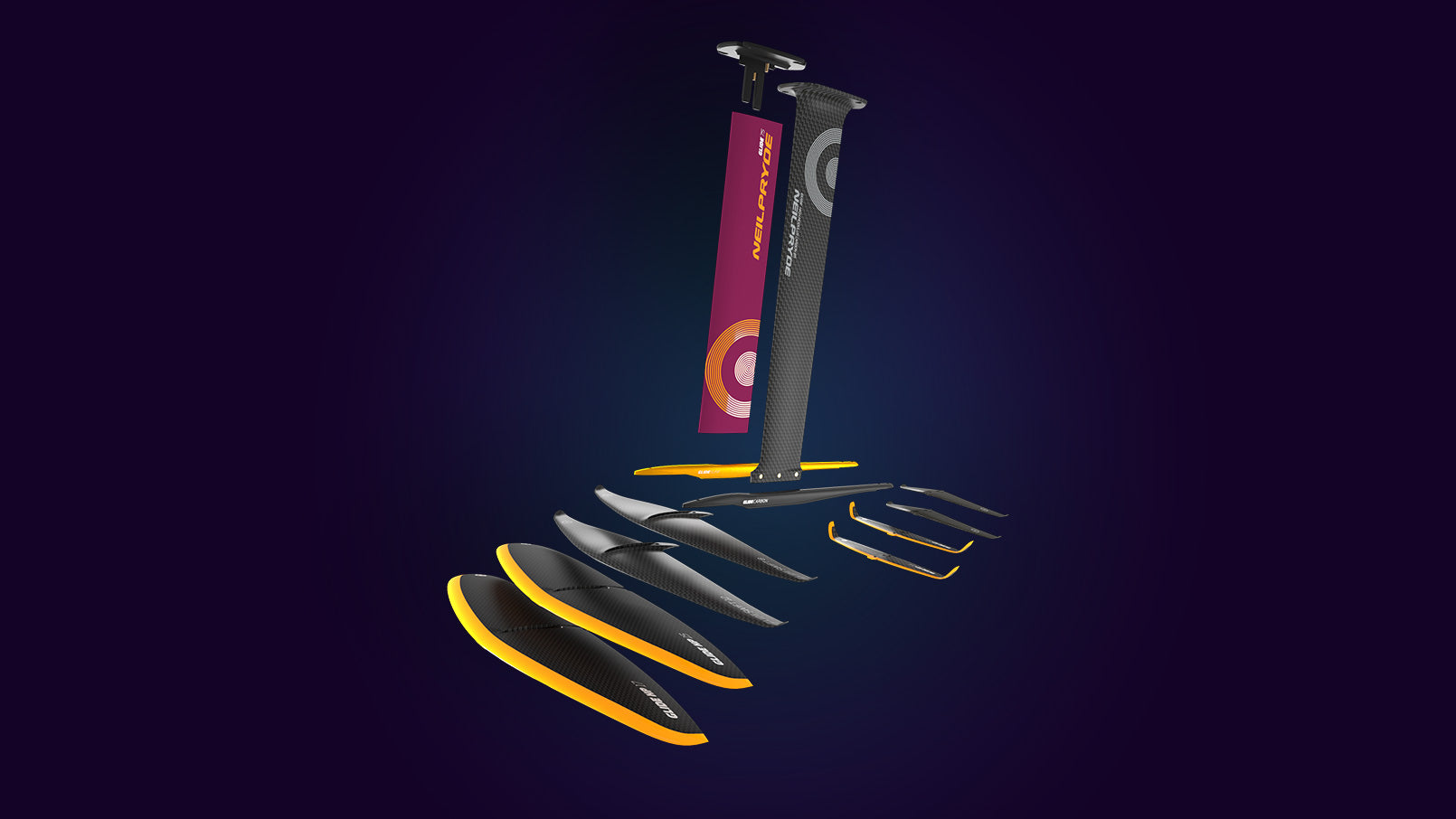

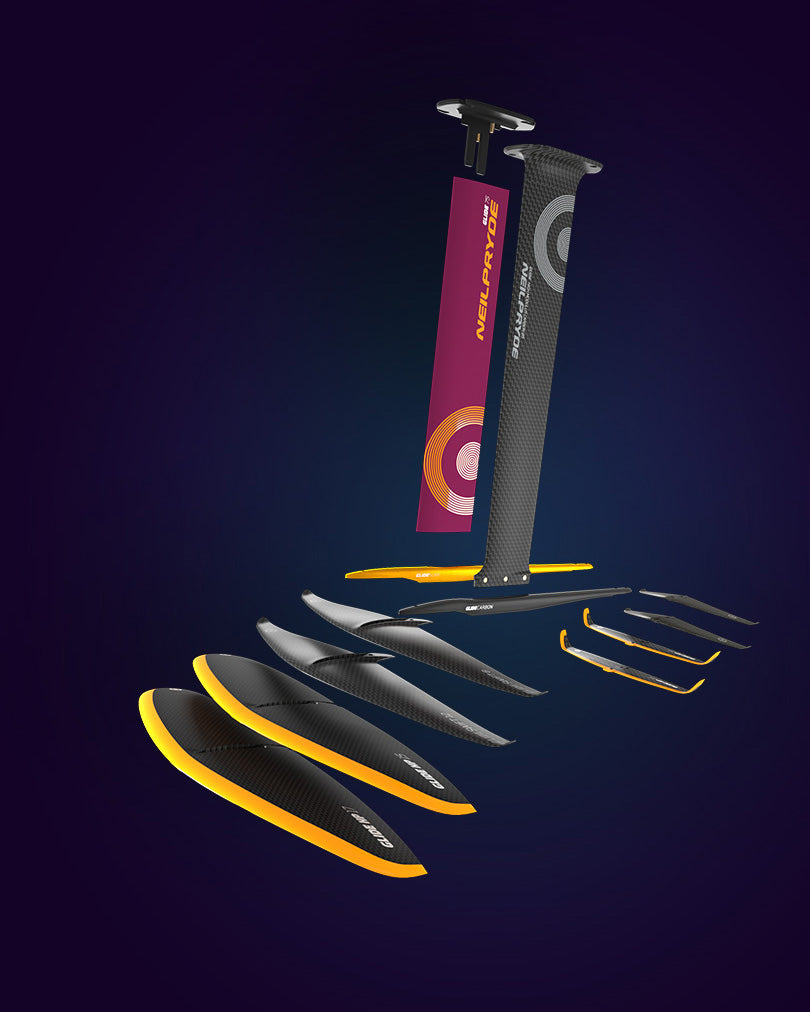

MODULAR FOIL SYSTEM

GLIDE HP is a fully modular system so you can expand your foil setup by simply adding new wings. Glide HP now offers a range of front wings from 1100cc all the way to 2300cc to cater for every level and size of foiler. Glide Wind comes with a longer fuselage and 85cm mast for windsurf foiling and Glide Surf comes with a shorter, more maneuverable fuselage and a shorter, 75cm mast to be able to access shallower breaks. Glide Suf Carbon comes with the shortest fuselage for maximum agility and is available in 75 or 85cm mast lengths.

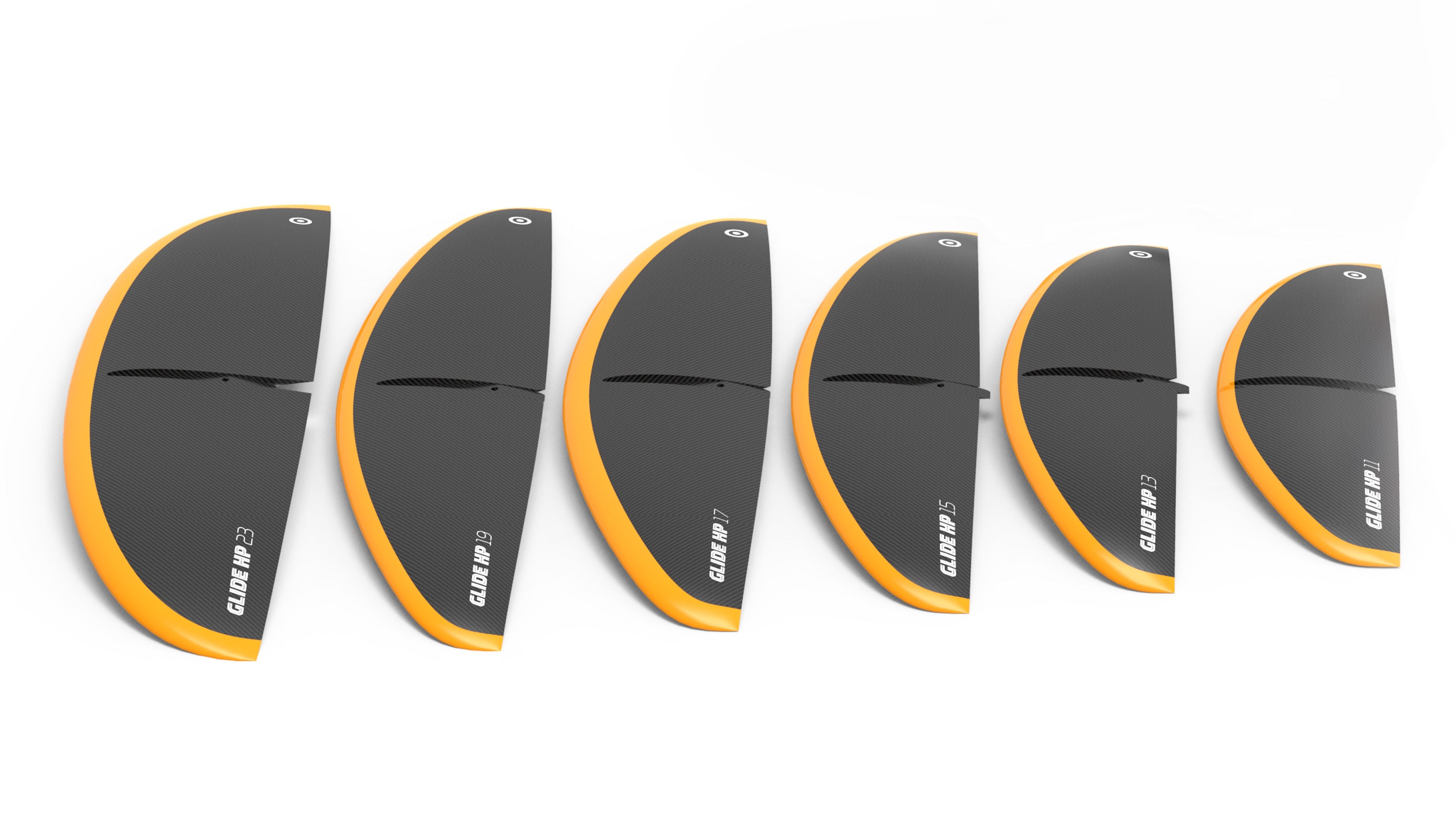

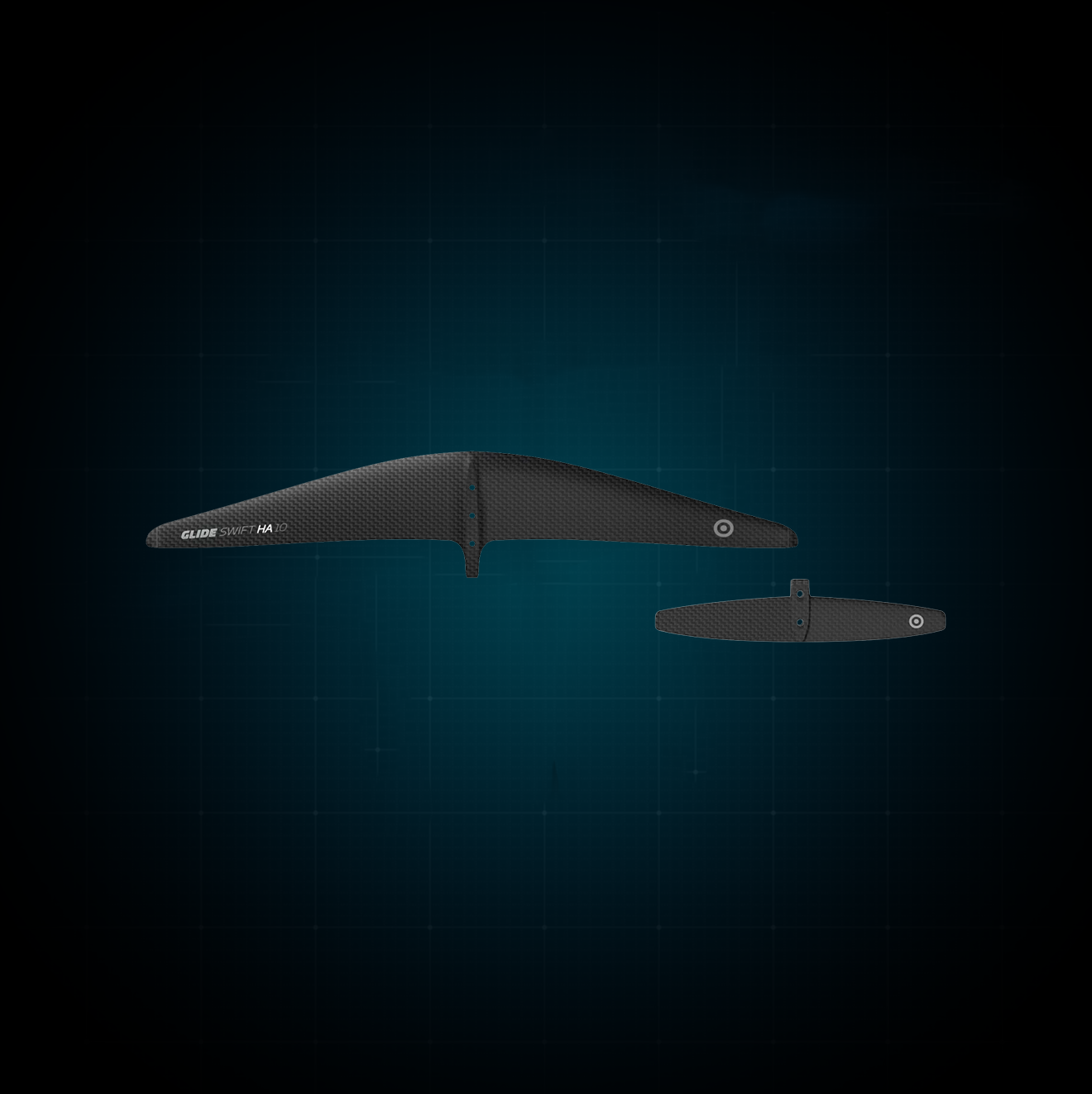

FRONT WINGS

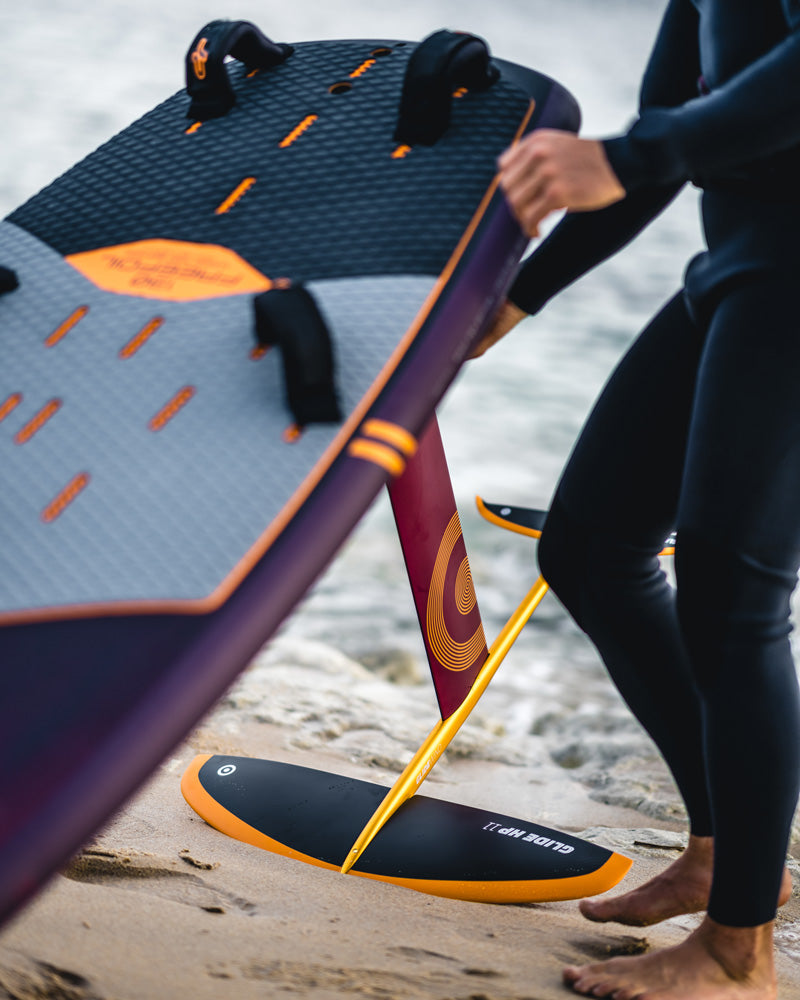

GLIDE wings are made of pre-preg carbon layup with inner foam construction for maximum durability to weight ratio. This setup creates a natural tendency to roll into turns maintaining a nice balance during your ride.

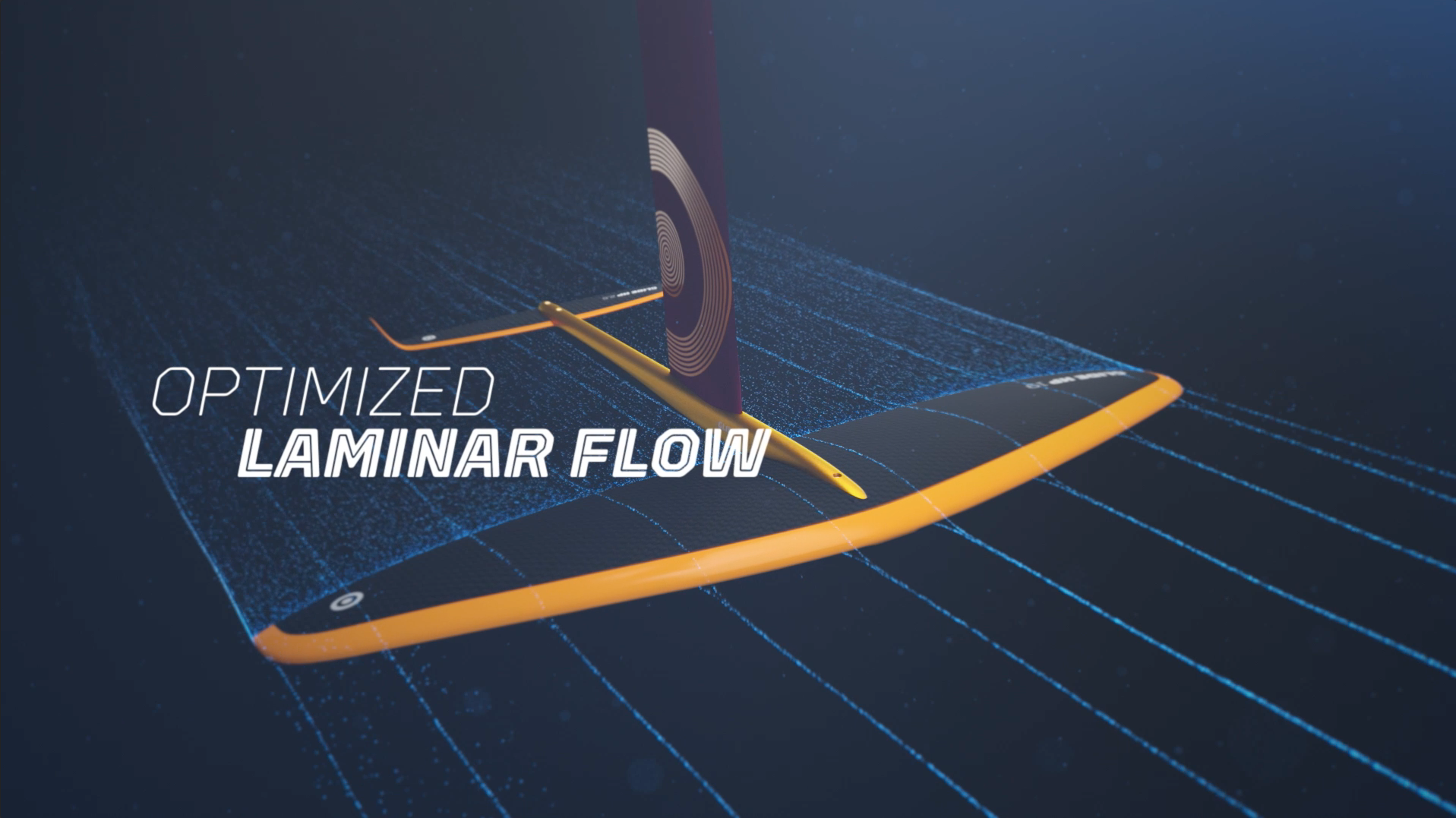

Through the sophistically developed design of the front wing, the Glide Foil HP range reaches an incredible top speed and maintains great maneuverability. On the wave, the Glide Surf allows you to fly through the sections and progress from straight riding to progressive foil-turns.

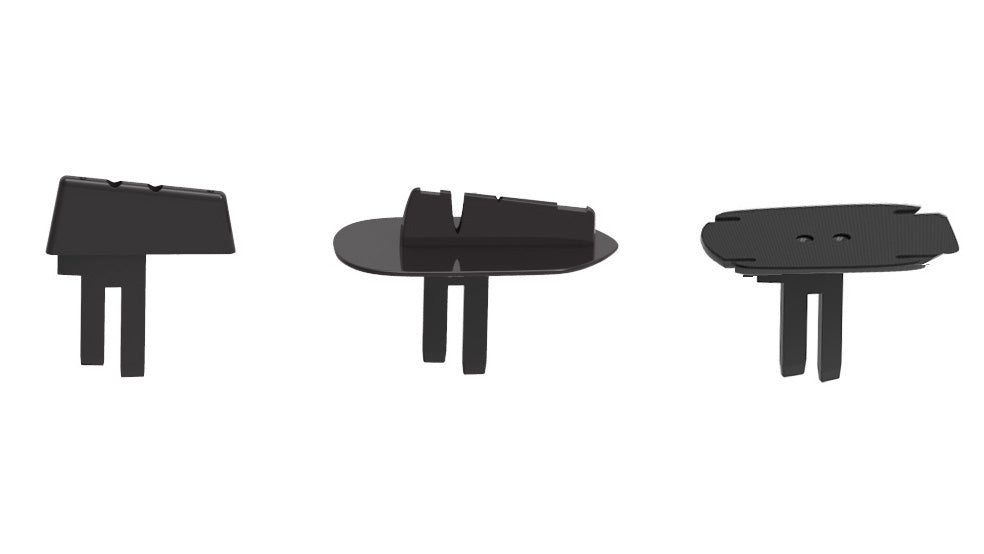

CONNECTION PLATES

CNC reinforced base construction.
Two deep titanium vertical tube connections to the mast for maximum strength, eliminating movement and offering perfect load transfer. Avoids vibration around the upper attachment area.

Choose your base system depending on your sport.

Foil Range Comparison

Choose which foil is right for you.

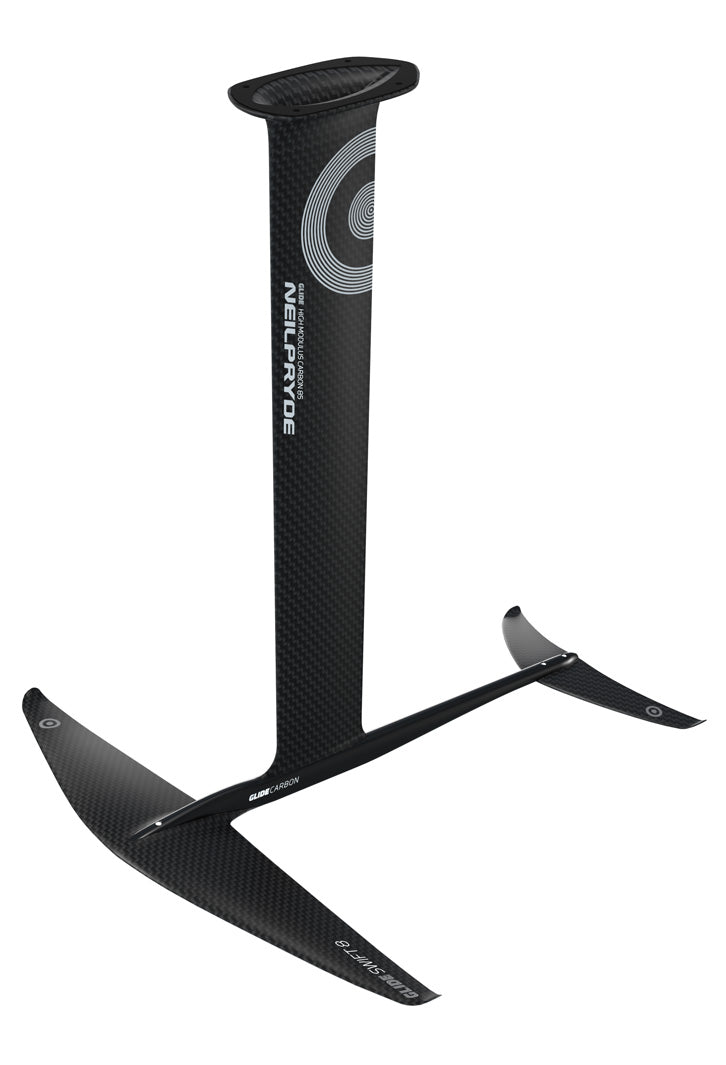

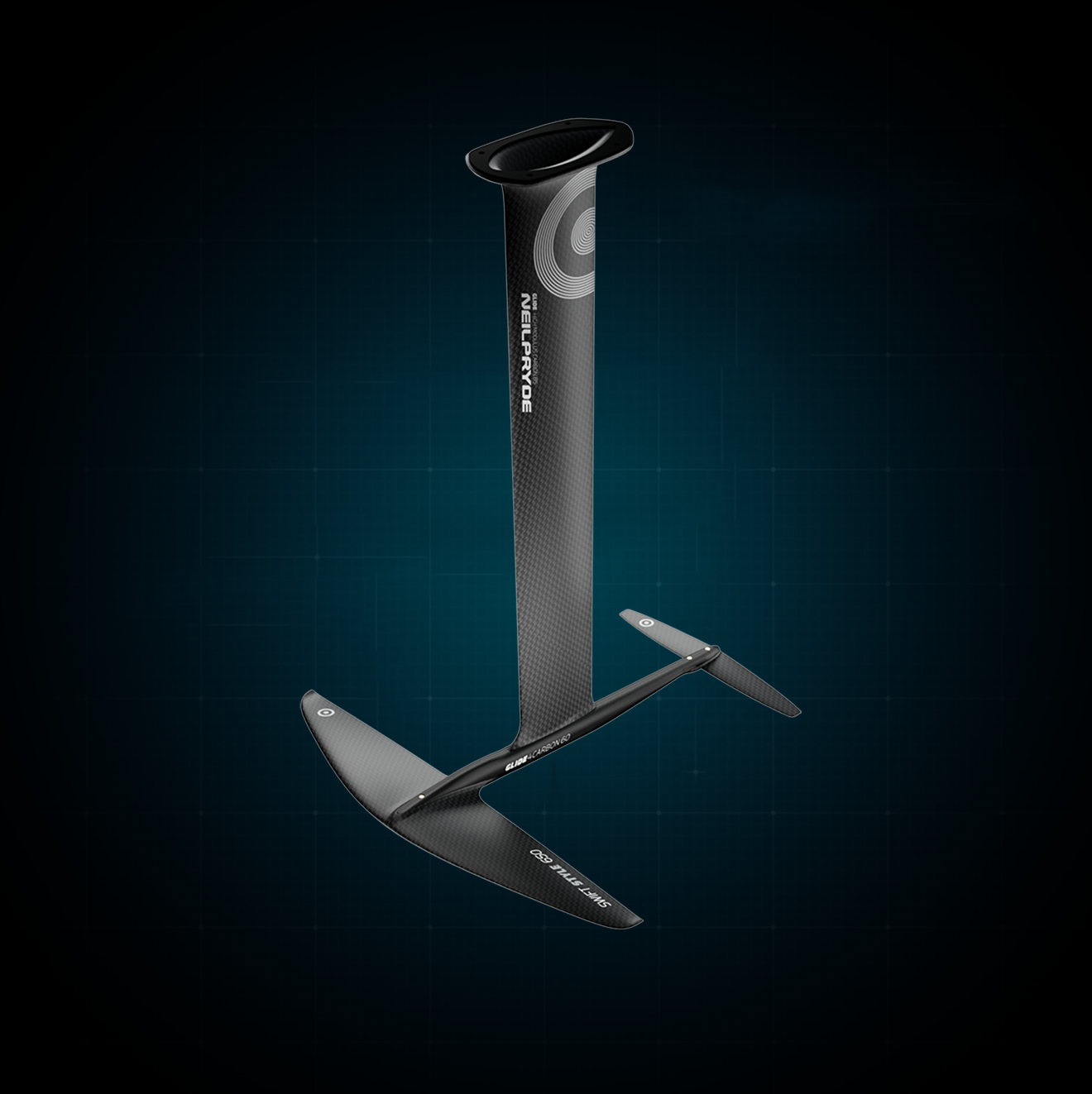

GLIDE SWIFT CARBON

85cm carbon mast for a light weight setup and optimum clearance.

CNC machined 71cm fuselage for maximum agility.

Carbon surf plate for ultimate stiffness.

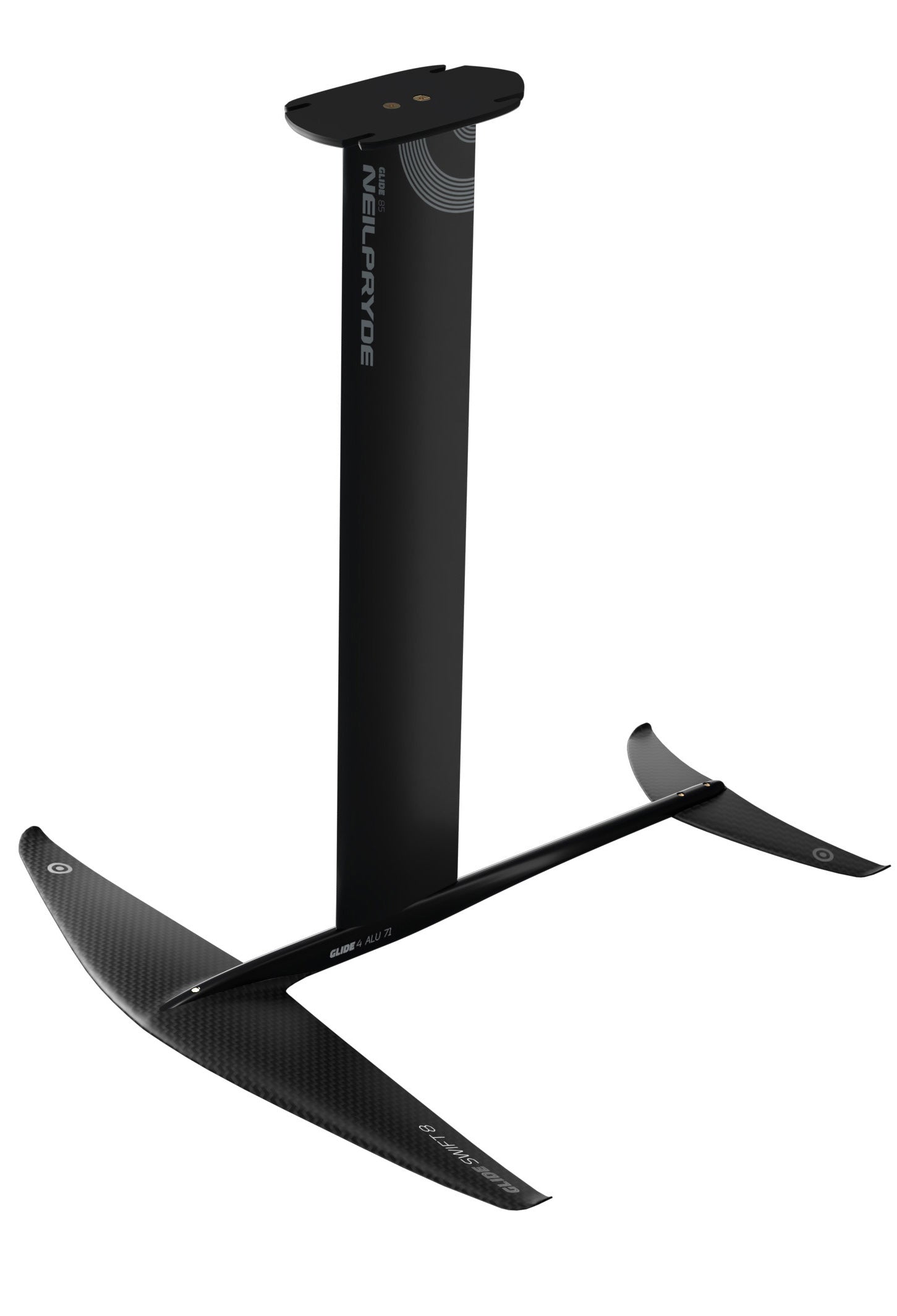

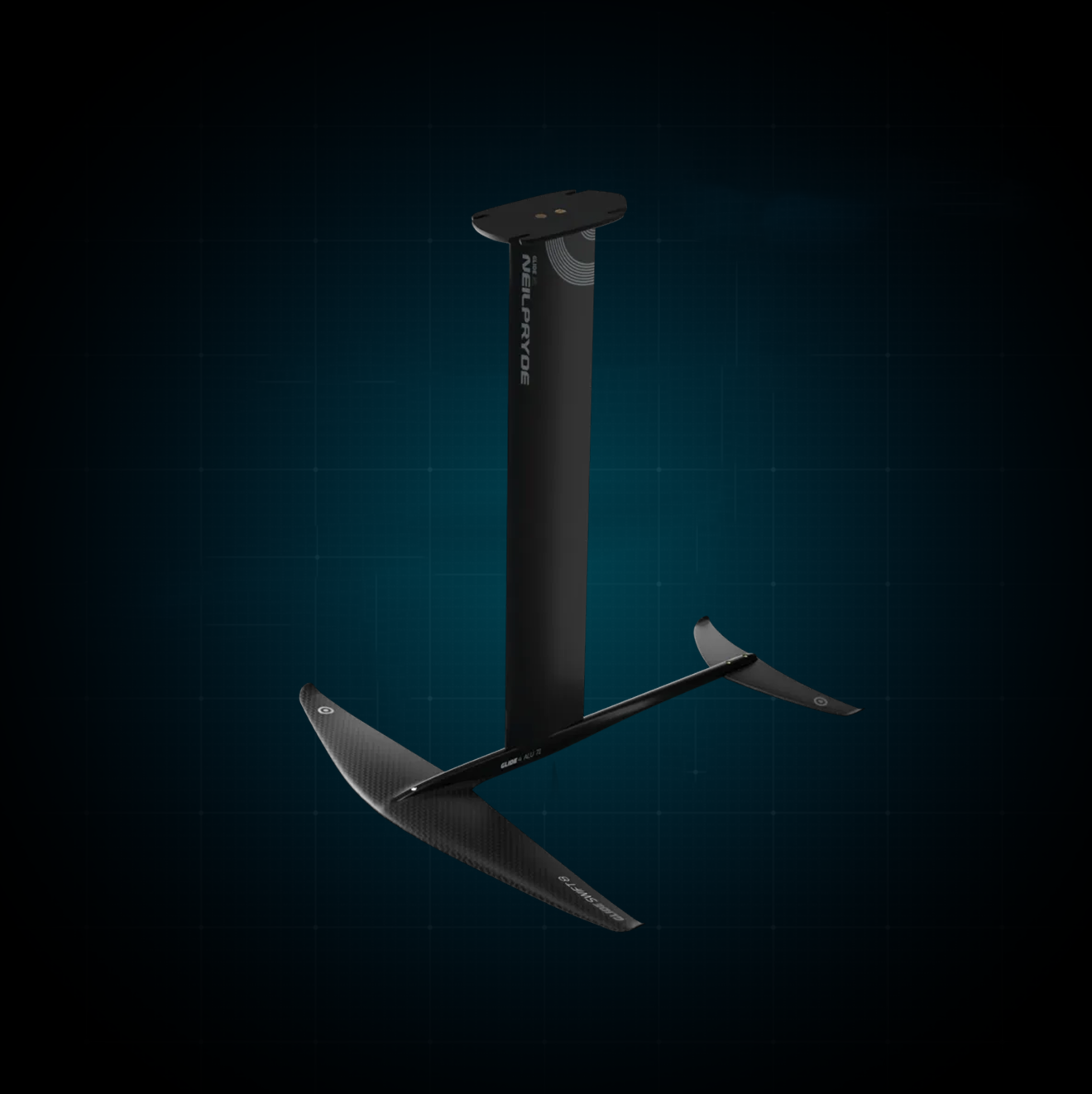

GLIDE SWIFT ALU

75cm mast for direct control and use in shallow waters.

CNC machined 71cm fuselage for maximum agility.

Your choice of connection plate.

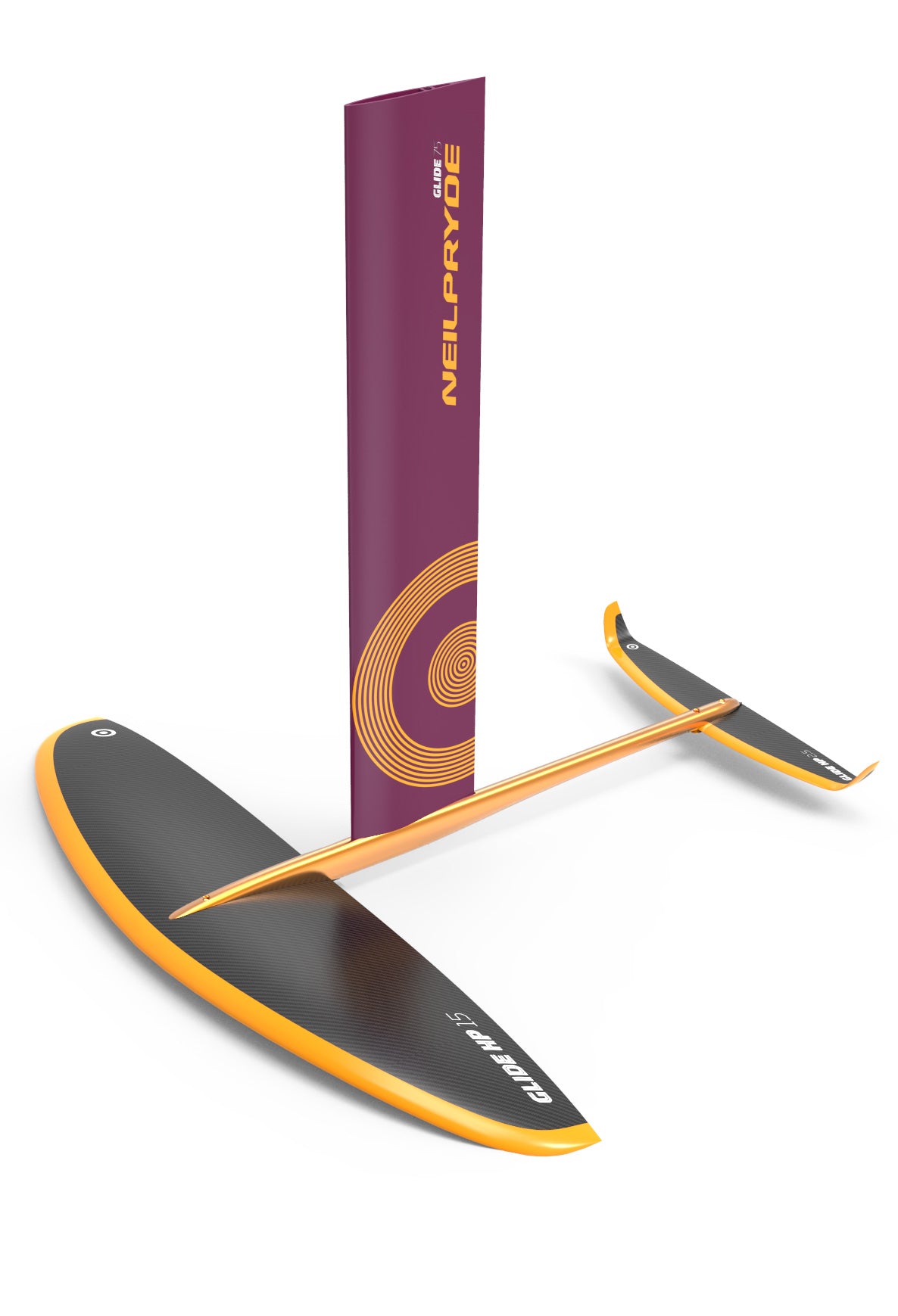

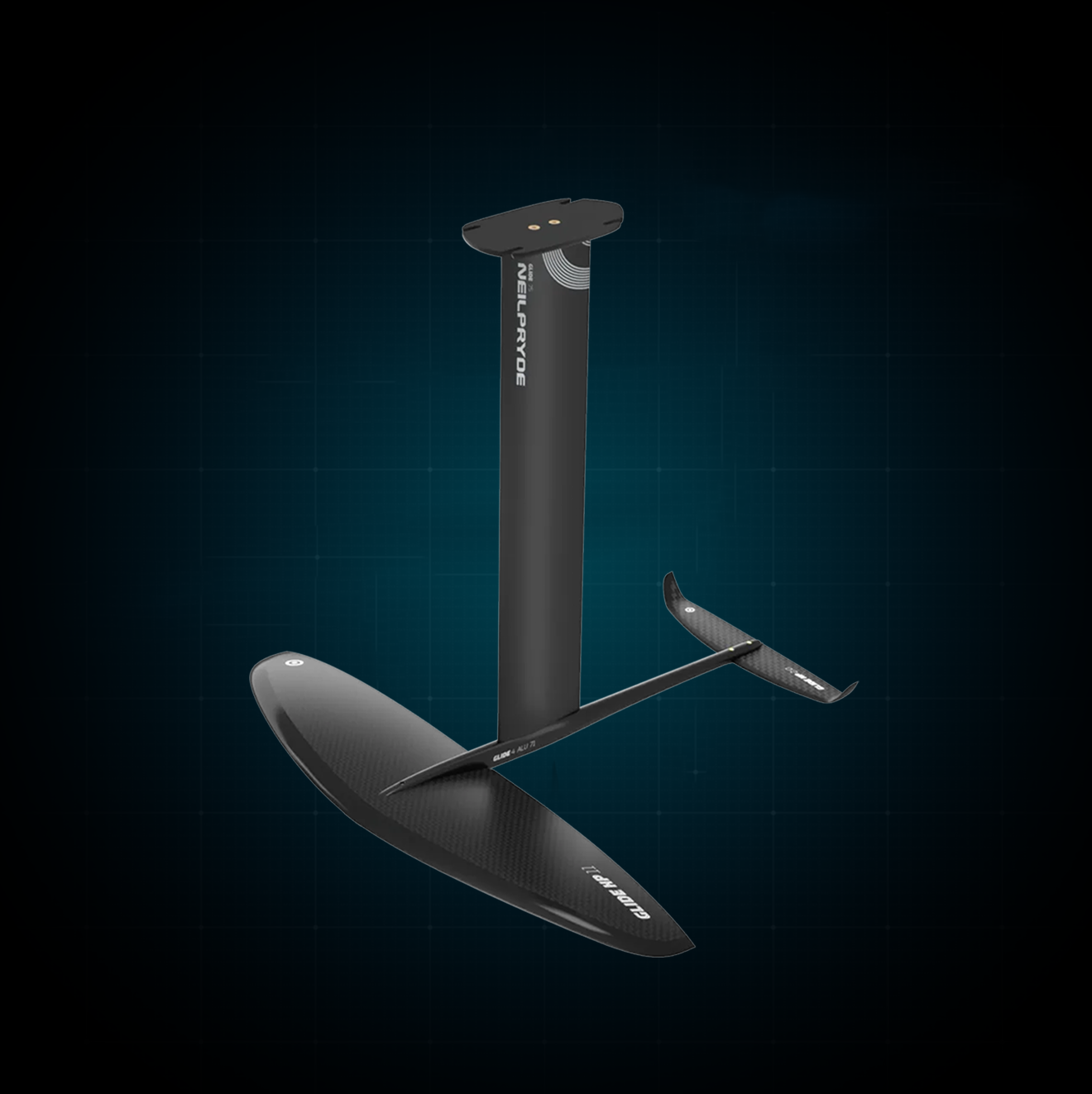

GLIDE SURF

75cm mast for direct control and use in shallow waters.

CNC machined 71cm fuselage for maximum agility.

Your choice of connection plate.

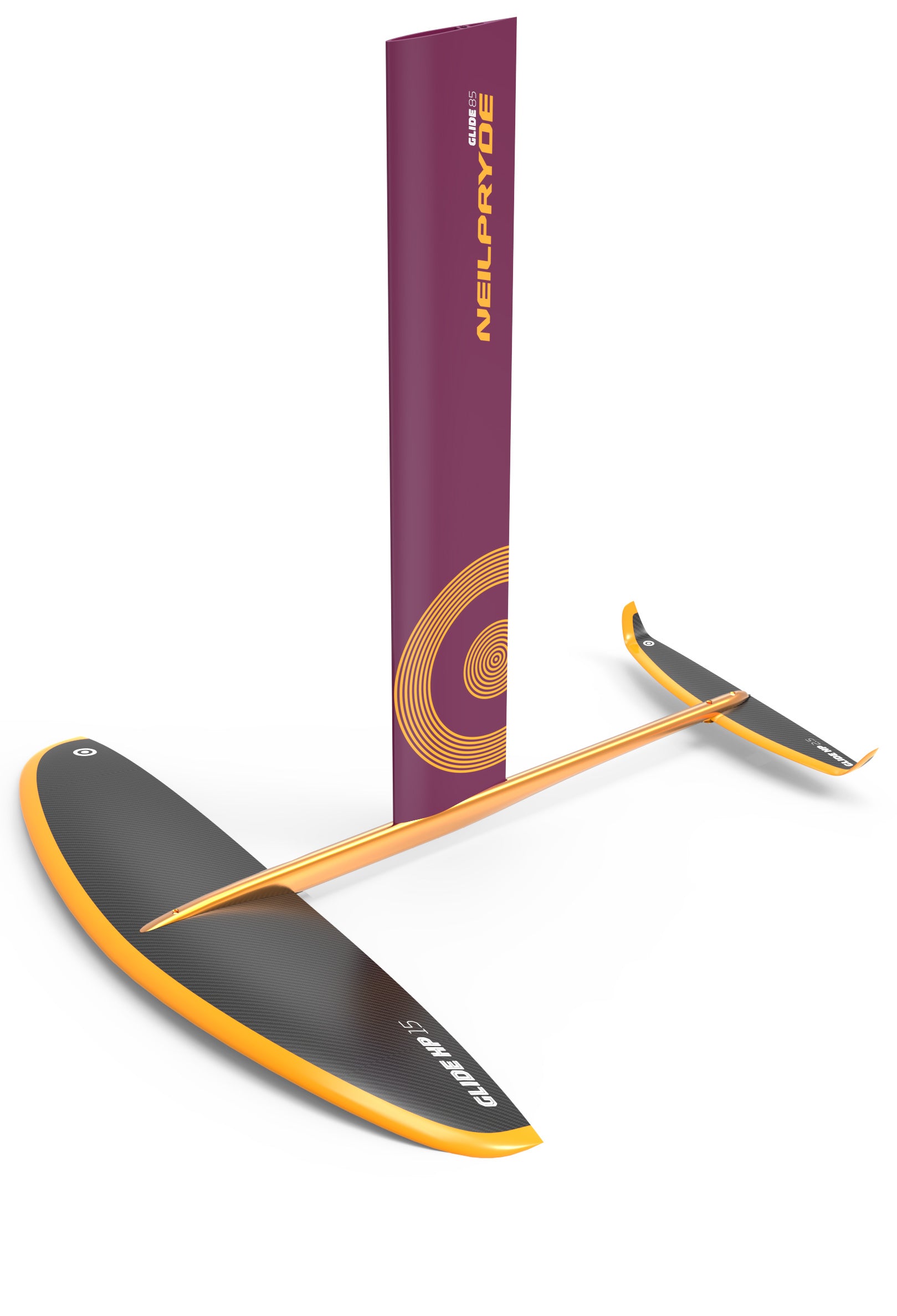

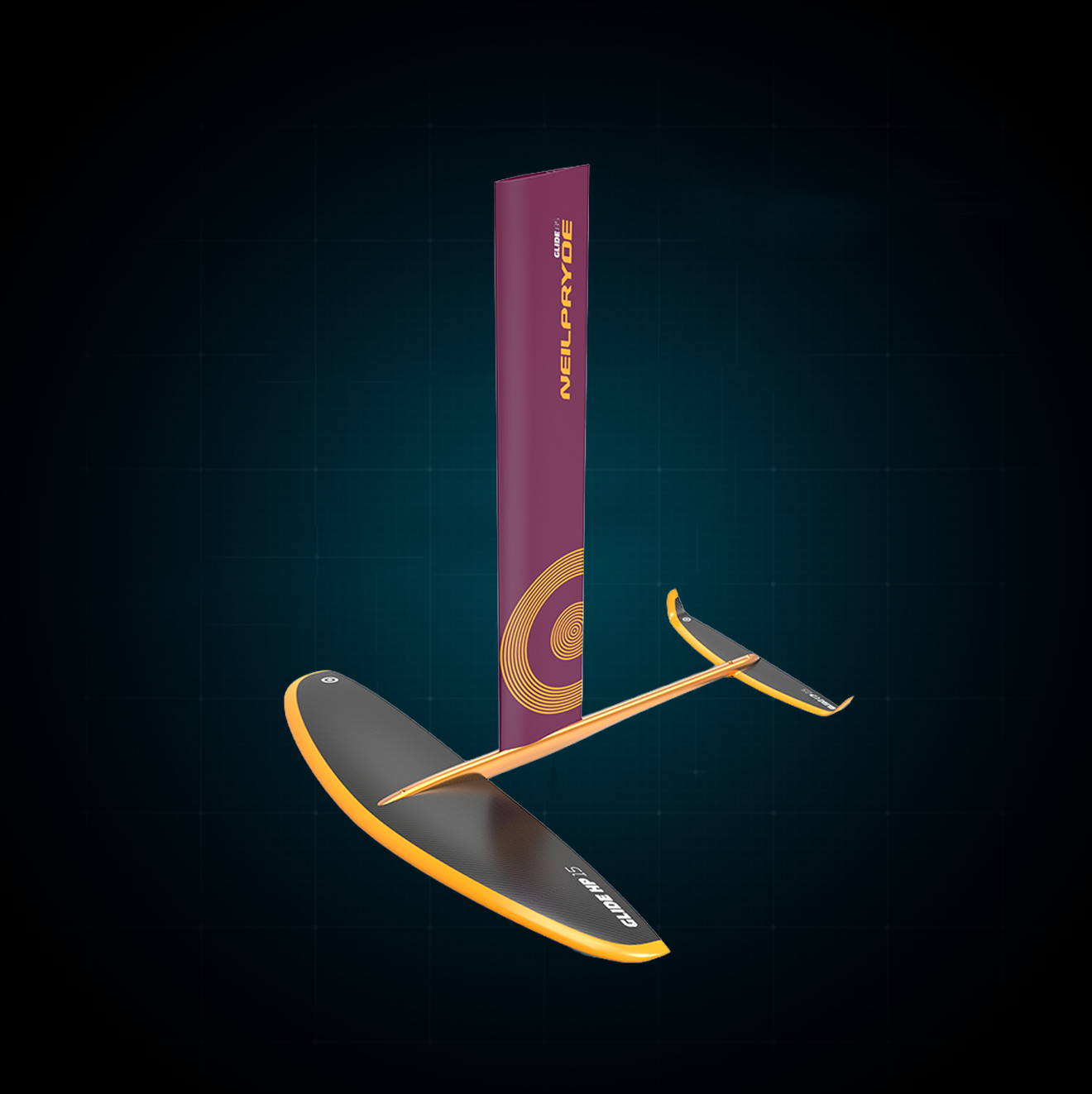

GLIDE WIND

85cm mast for extra clearance when traveling at speed.

CNC machined 81cm fuselage for directional stability.

Your choice of connection plate.

Foil Range Comparison

Choose which foil is right for you.

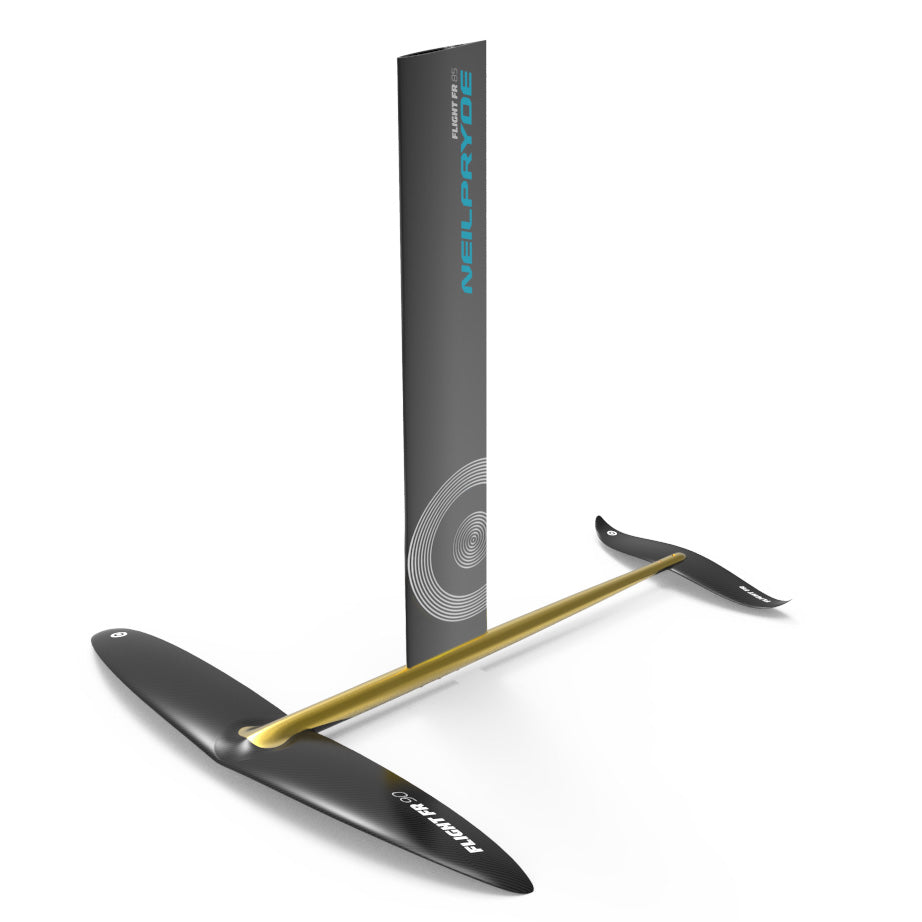

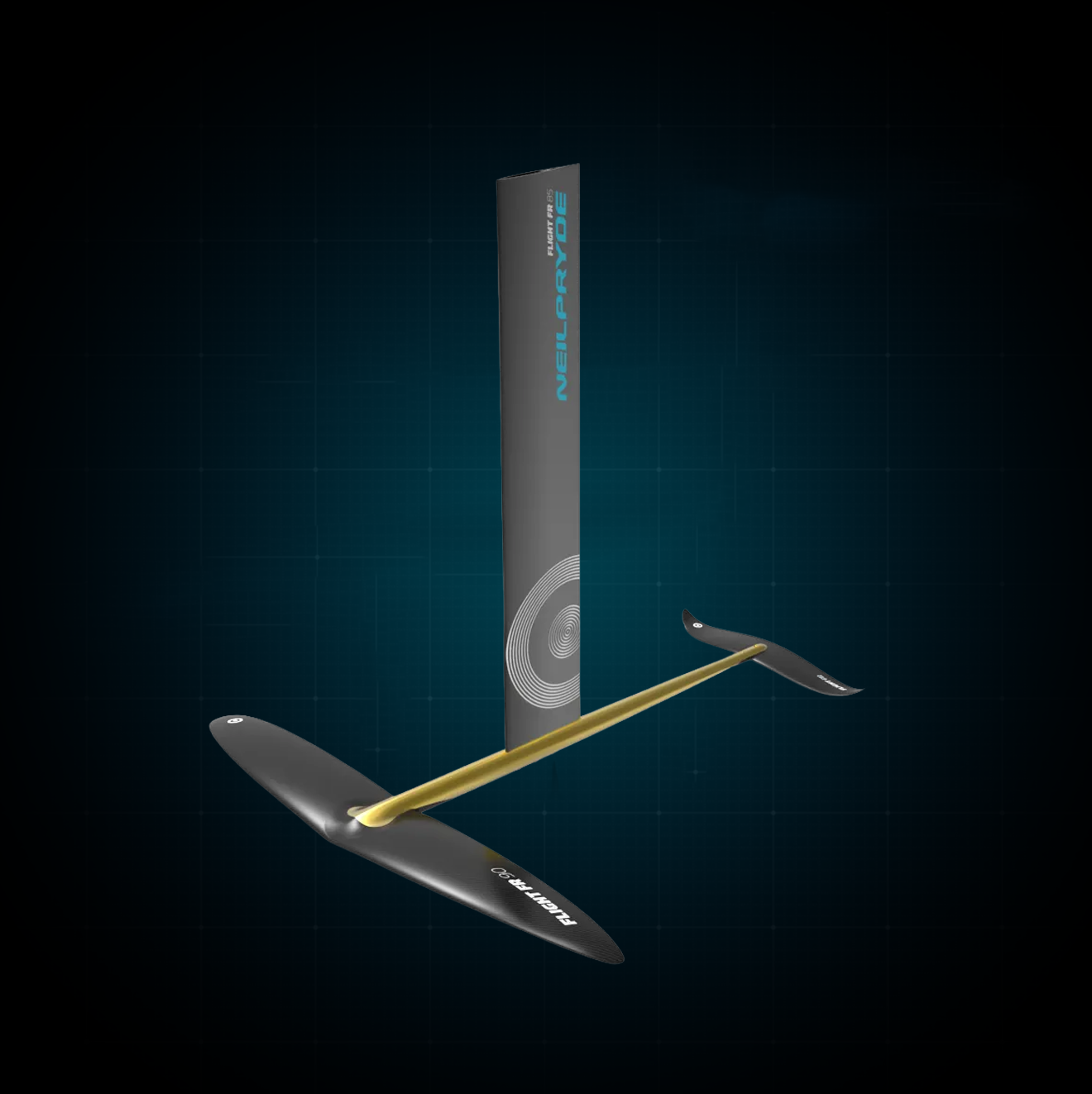

FLIGHT FR

85cm aluminum mast for optimum clearance and stiffness

CNC machined 90cm fuselage for maximum performance.

Your choice of connection plate

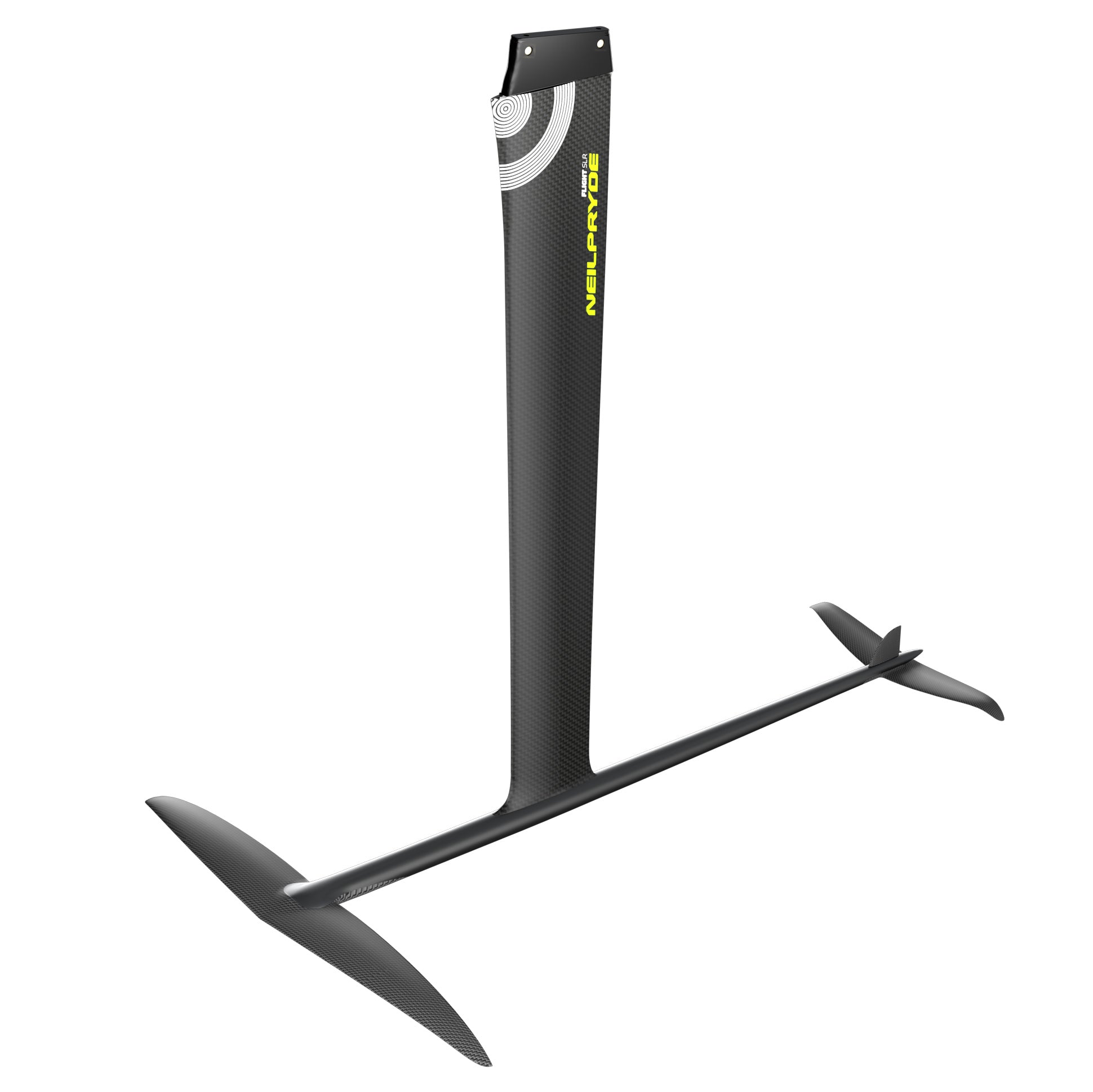

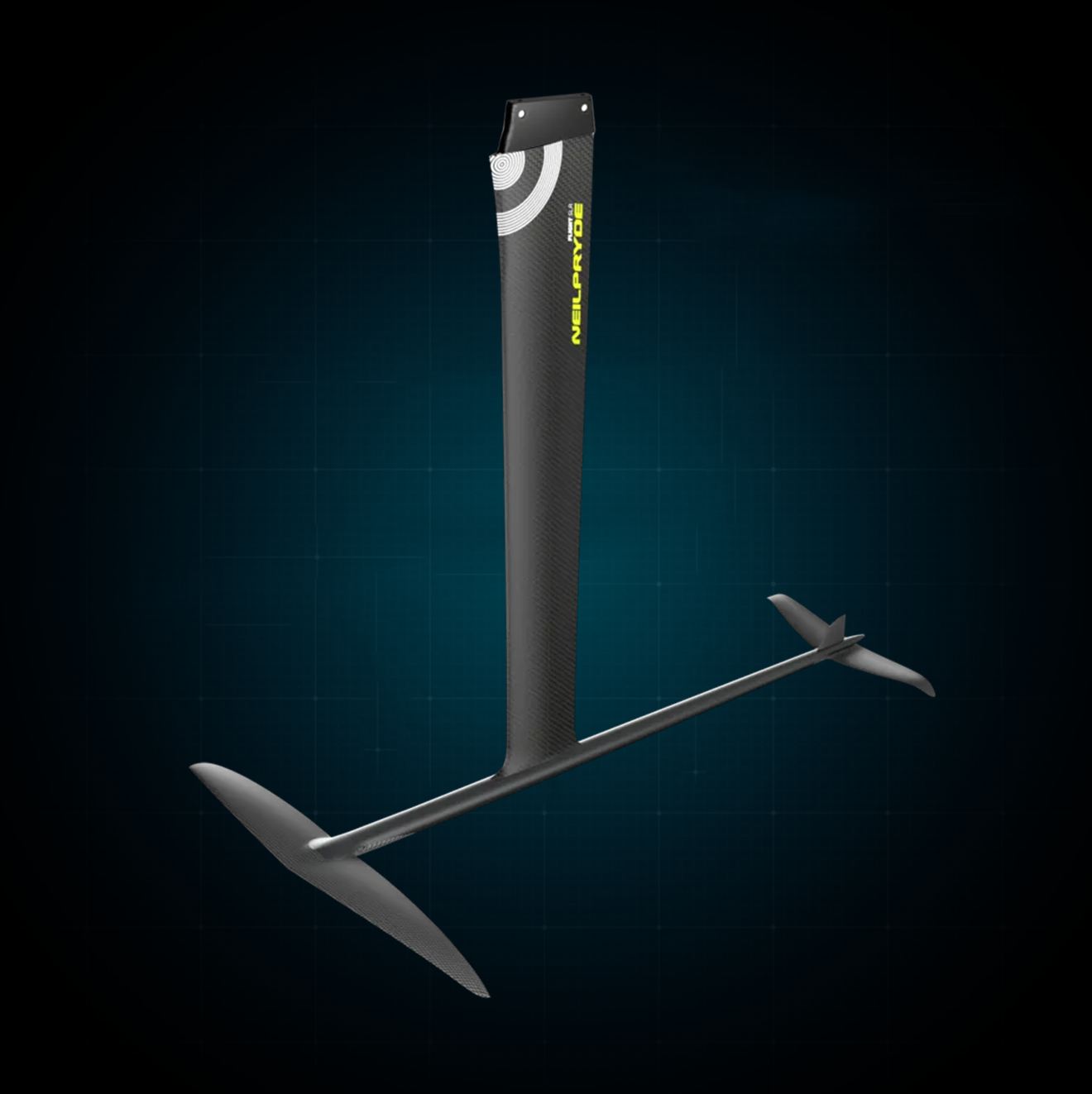

FLIGHT SLR

95CM carbon mast for optimum clearance, light weight and stiffness.

95 or 105cm fuselage.

Deep Head Tuttle Box Fixed Head

Design Driven

INNOVATION

Designed and tested at our NeilPryde Maui Design Center, then further developed through our team riders' feedback from across the world. No stone is left uncovered in our relentless drive to be the best at what we do.

Yentel Caers

The Glide Series wings have everything I need to extend my windsurfing time on the water all the way down below 10 knots. They are stable and easy for first timers but have everything a pro rider needs to excel.

Yentel Caers

The Glide Series wings have everything I need to extend my windsurfing time on the water all the way down below 10 knots. They are stable and easy for first timers but have everything a pro rider needs to excel.

GLIDE SERIES Features

Lift & Acceleration

Smooth, early lift for easy takeoff and touchdown, even at low speeds.

Glide and Stability

Long glides and stable rides.

Dihedral Front Profile

Glide surf is designed to be able to rip through radical turns. The dihedral medium aspect ratio of the front wings allow you to keep generating lift even when the foil is radically tilted to one side or another. You will come out of turns with more speed and lift than you went in with.

Smooth Edges

Because safety is no accident. Our Glide Series wings are some of the safest high-performance wings on the market.

Modular Glide System

compatibility

GLIDE SERIES COMPATIBILITY

Glide Series components are designed to work seamlessly with each other.

Glide Aluminum masts will fit Glide Aluminum Fuselages and Glide Carbon masts will fit Glide Carbon Fuselages.

All Glide front wings and tail wings will fit on all Glide fuselages.

EASE OF USE

Glide Series foils offer the perfect entry level setup with rounded edges for maximum safety.

Don't let the ease of use fool you though as Glide Foils also offer excellent performance and amazingly long glide times for advanced to pro riders alike.

COMPATIBILITY DETAILS

Foil Configuration Options

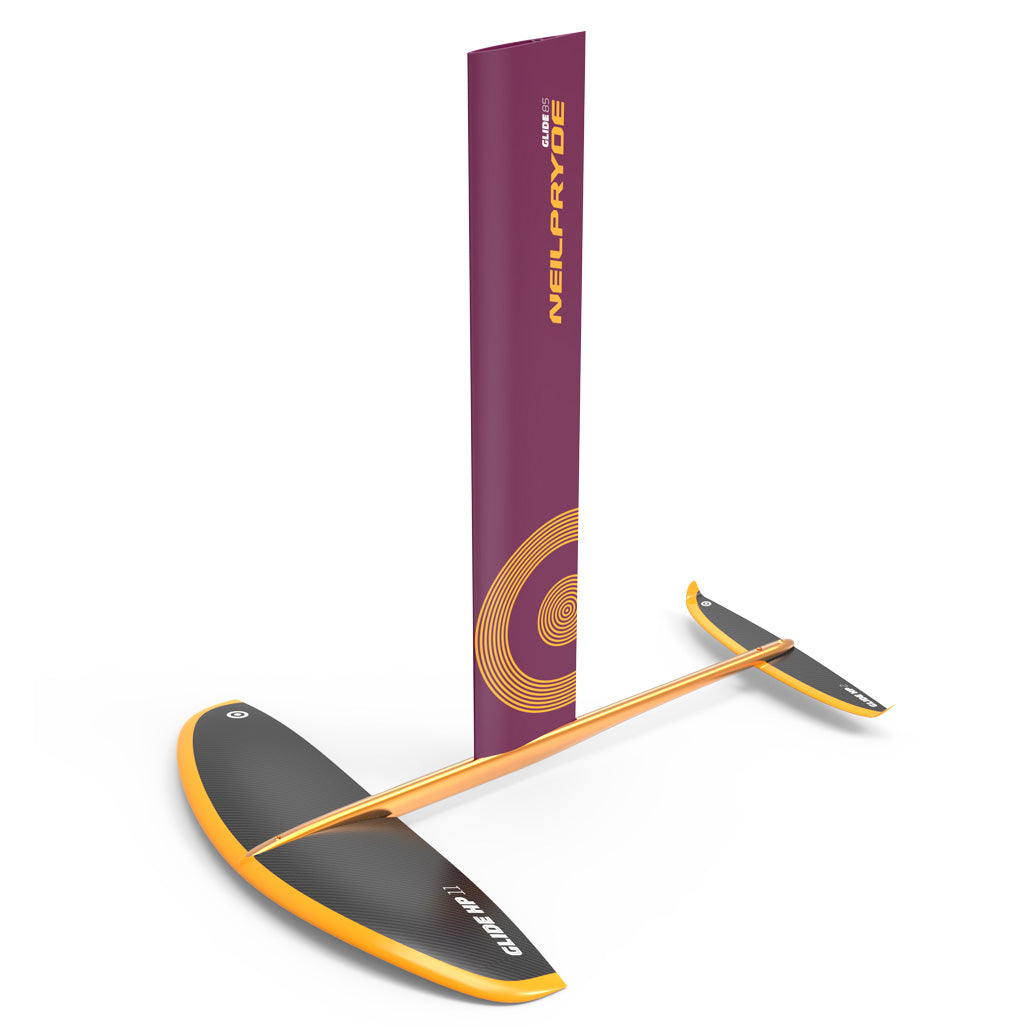

Glide Wind HP
Glide Wind HP Sale price$0.00 USD
Glide Surf HP
Glide Surf HP Sale price$0.00 USD
Glide Swift Carbon
Glide Swift Carbon Sale price$0.00 USD
Mast Material

Aluminium

Aluminium

Carbon

Mast Length

85cm

75cm

85cm

Fuselage

80cm Glide Fuselage Alu
*Does not fit on Carbon Masts

70cm Glide Fuselage Alu
*Does not fit on Carbon Masts

70cm Flide Fuselage 4Carbon
*Does not fit on Aluminium Masts

Front Wings

11: 1130
13: 1300
15: 1490
17: 1650
19: 1850
21: 2100
23: 2270

11: 1130
13: 1300
15: 1490
17: 1650
19: 1850
21: 2100
23: 2270

6: 600cc
8: 800cc
10: 1000cc
12: 1200cc
14: 1450cc

Back Wings

210 (fits with Front Wings 11, 13, 15)
235 (fits with Front Wings 17, 19, 21, 23)

210 (fits with Front Wings 11, 13, 15)
235 (fits with Front Wings 17, 19, 21, 23)

170 (spare part only - recommended for advanced riders)
210 (fits with Front Wings 6, 8, 10)
270 (fits with Front Wings 12, 14)

Fuselage / Wing Compatibility

Fuselage fits all Glide Surf and Glide Swift front and tail wings.
Fuselage only fits "Glide Surf / Glide Wind Aluminium" mast.

Fuselage fits all Glide Surf and Glide Swift front and tail wings.
Fuselage only fits "Glide Surf / Glide Wind Aluminium" mast.

Fuselage fits all Glide Swift and Glide Surf front and tail wings.
Fuselage only fits "Glide Surf Carbon" mast.
