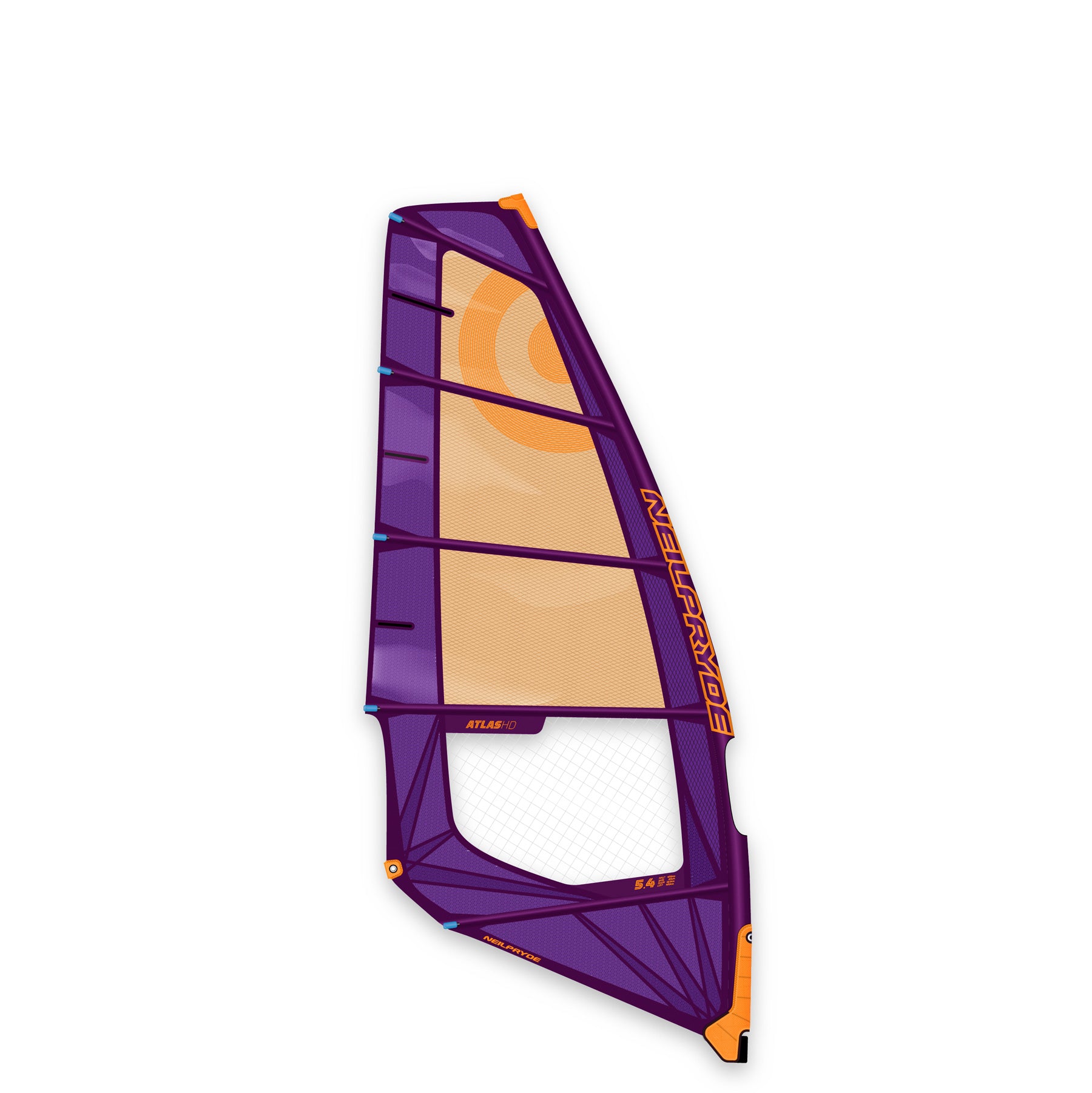

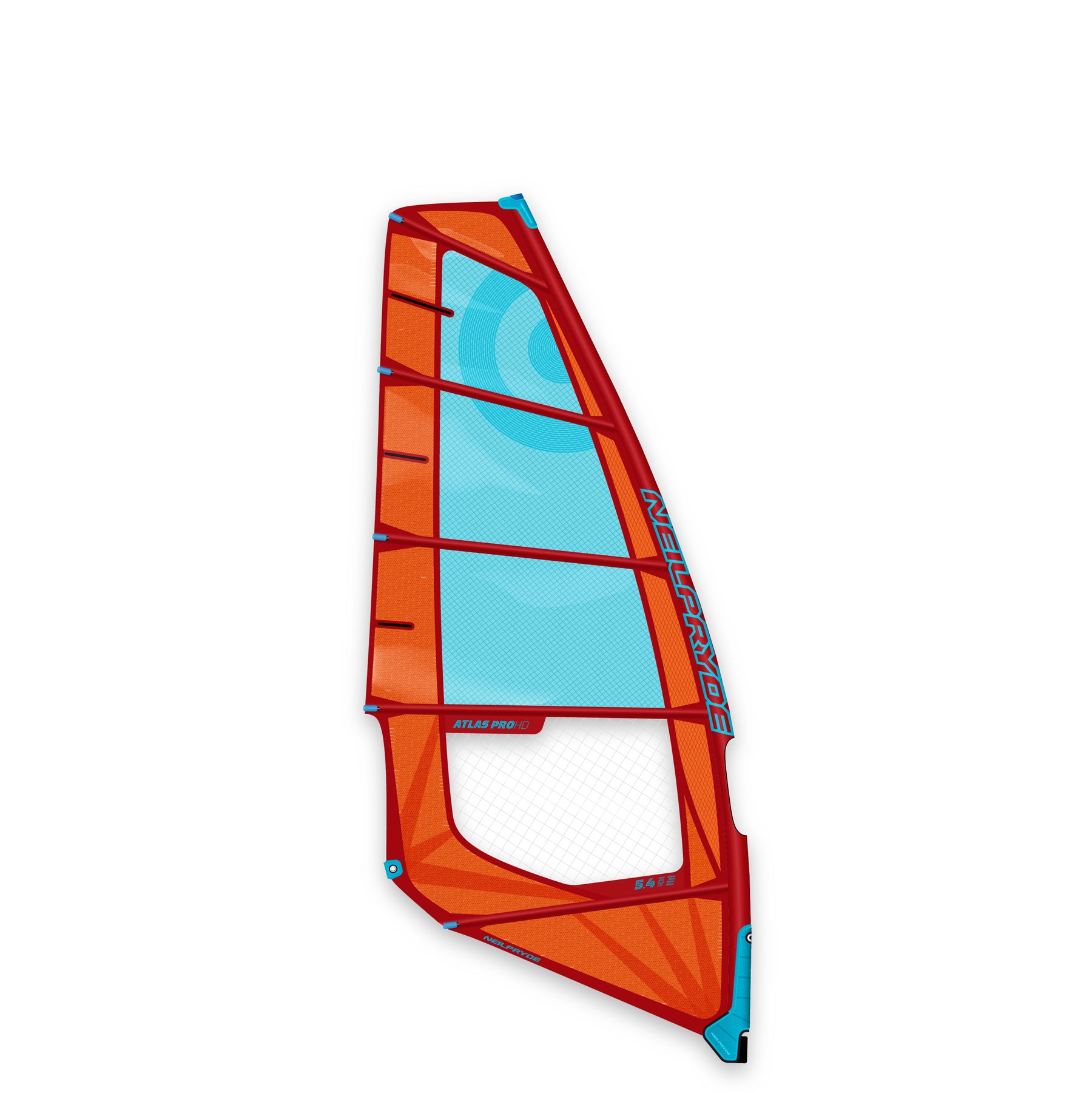

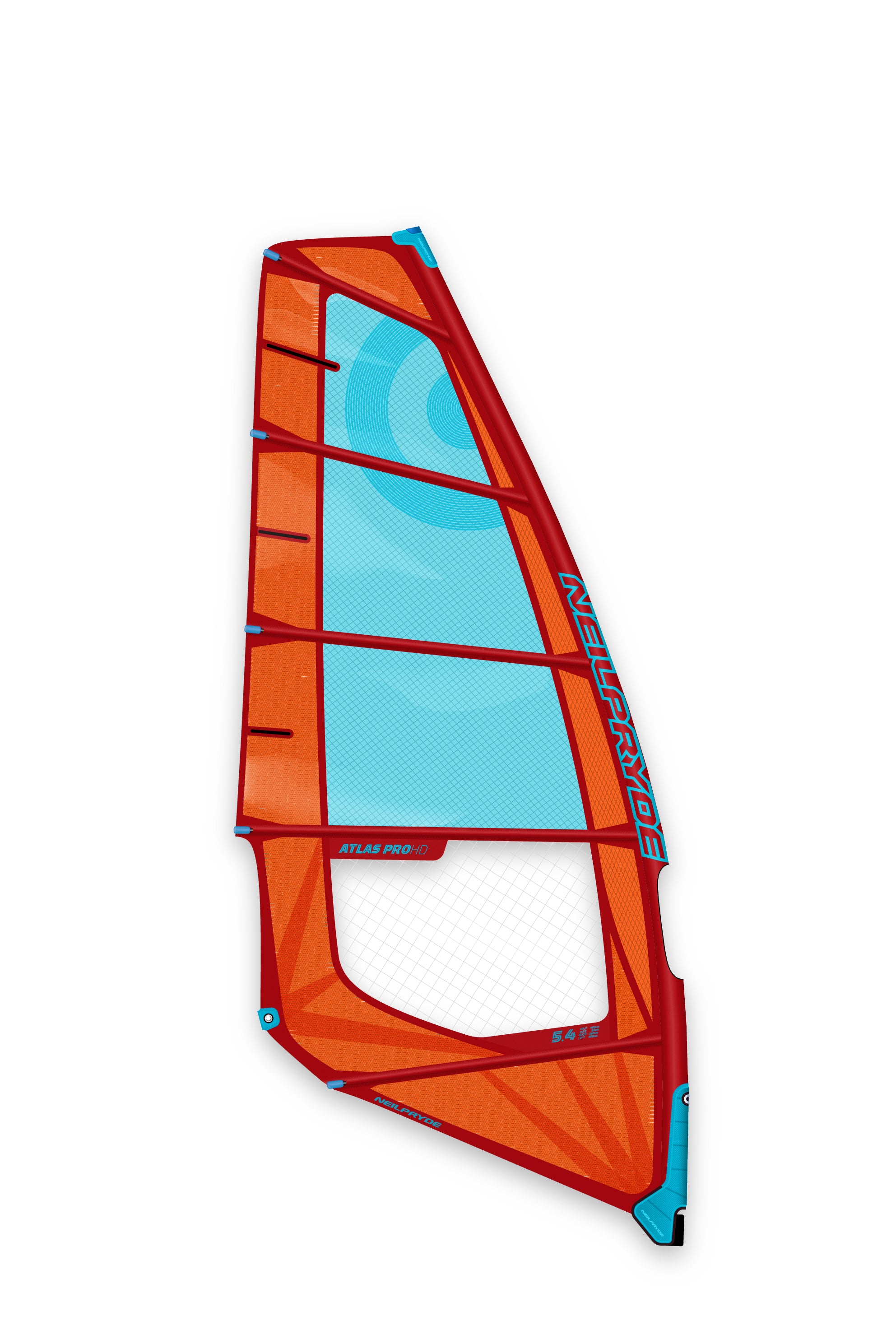

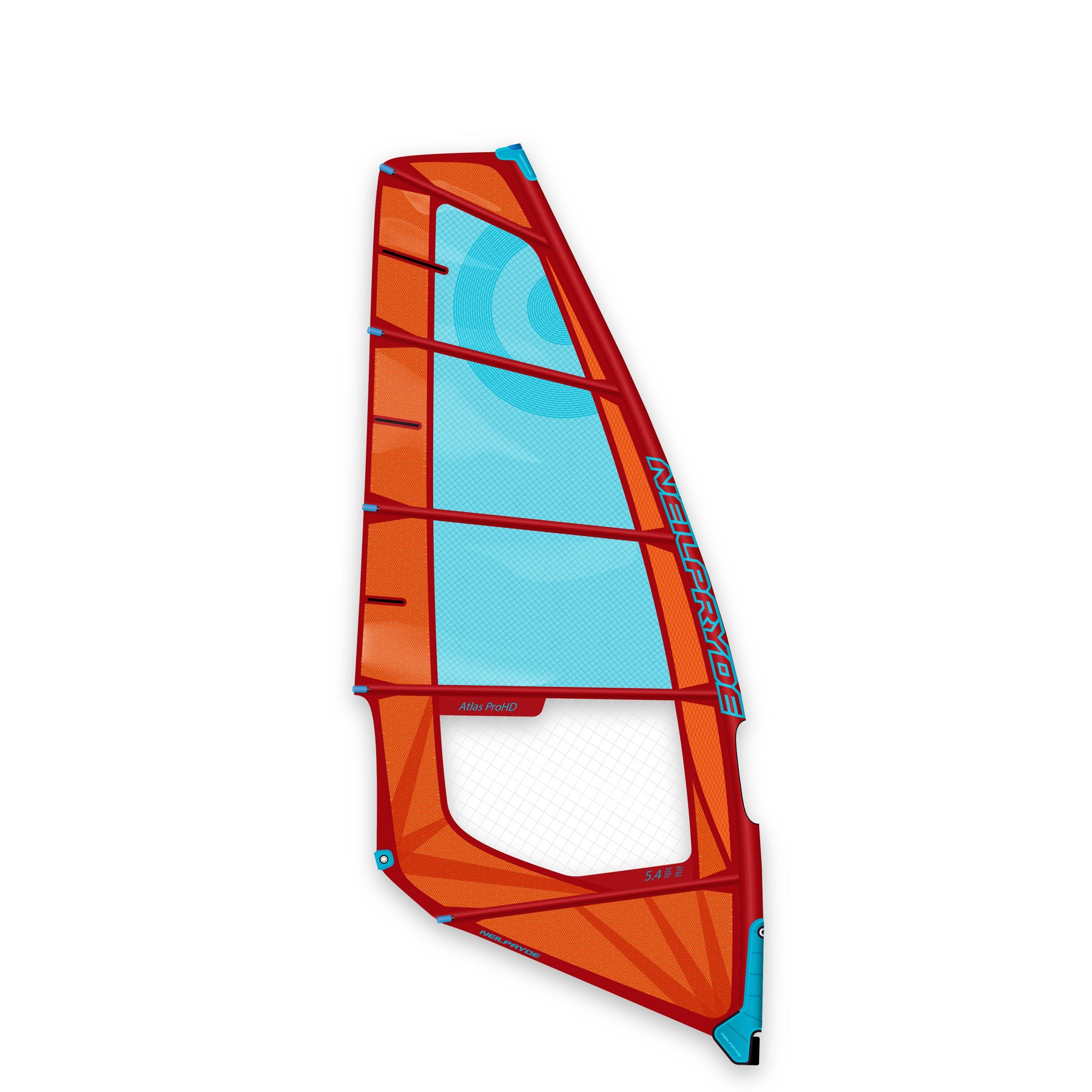

ATLAS PRO HD 2023


Superb early planning combined with controllable power, stability, upwind performance and high wind control make this a favourite sail for onshore conditions and / or heavier sailors.

5 battens for ultimate performance. Atlas will allow you to blast over whitewater and jump higher than ever while still feeling soft enough to perform well on the waves when conditions allow.

Color: C2 Orange
Size: 4.2

Design Driven

INNOVATION

Designed and tested at our NeilPryde Maui Design Center by Robert Stroj, then further developed through our team riders' feedback from across the world. No stone is left uncovered in our relentless drive to be the best at what we do.

POWERFUSE 2.0

Powerfuse clew and tack are our “signature” fully laminated radial overlapping internal panels used in PRO and PRO-HD constructions.

The 2023 version is redesigned to be lighter in weight compared to previous Powerfuse generations.
The unique feature of Powerfuse construction (also shared with Radial HD panels) is how the internal panels are cut and placed in a radial overlapping pattern creating a very strong, multiple layer laminate at high load points (tack and clew) and then gradually reducing the number of overlapping layers to distribute the loads progressively into the main sail body.

LIGHTWEIGHT SCRIM

Centre upper panels use 2mil LIGHTWEIGHT SCRIM laminate to minimize weight while providing outstanding rip resistance due to the high yarn density of this material.

Lightweight 3mil laminate with unidirectional TECHNORA fibres strategically placed in the leech panels to control stretch and stabilize the shape of the sail.

TAFFETA LUFF PANEL

Rip-stop Taffeta X-Ply laminate luff panel combines excellent stitch holding properties with responsive elasticity which makes the sail softer and more forgiving than regular X-Ply but lighter and more responsive compared to Dacron.

Construction Comparison

Choose which wave sail construction is right for you.

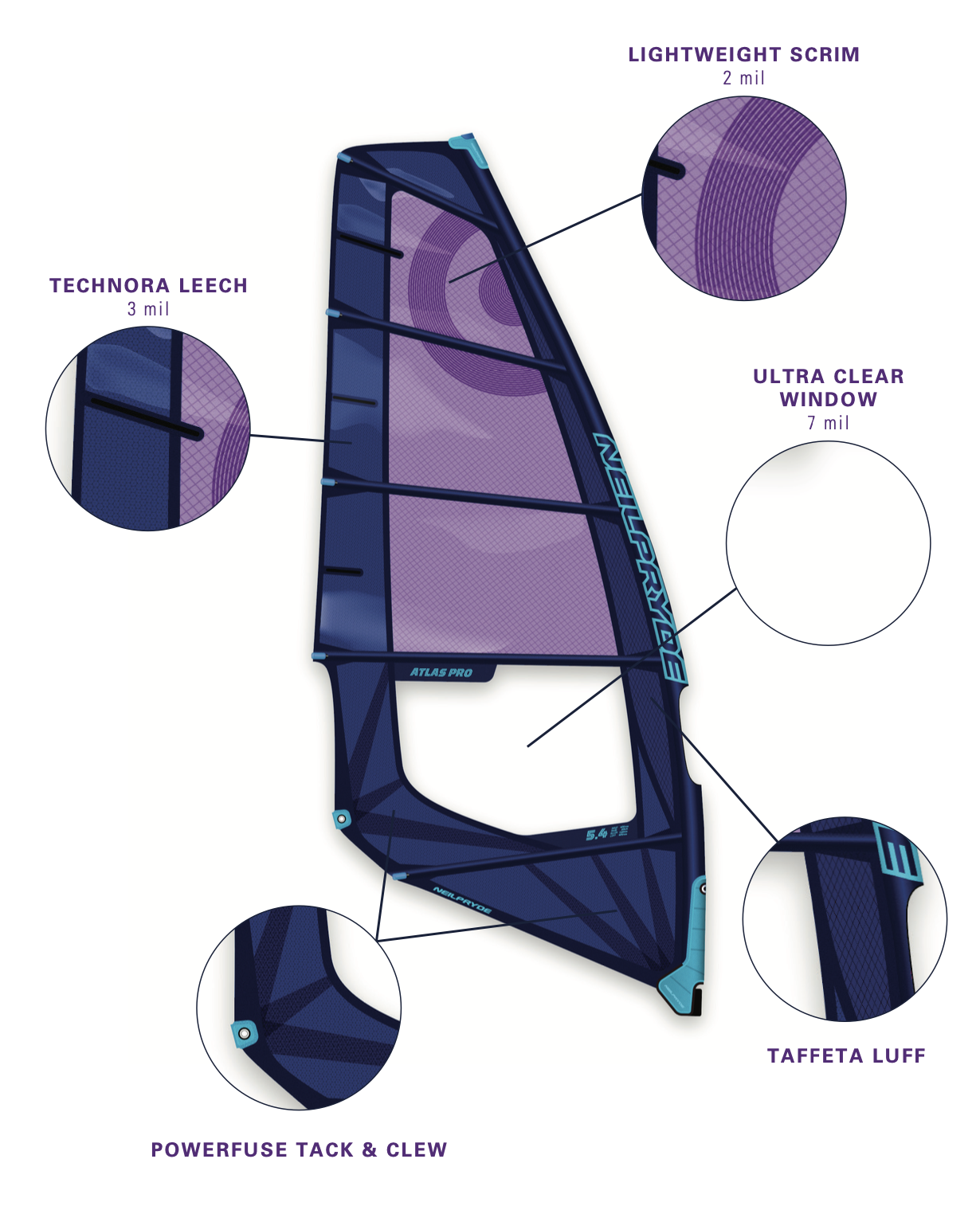

Pro

· Laminated Powerfuse tack and clew
· Technora panels in leech and head of sail
· Lightweight scrim upper panels
· Rip stop Taffeta X-Ply laminate luff
· Ultra clear window wanel
· Our most premium wave sail construction

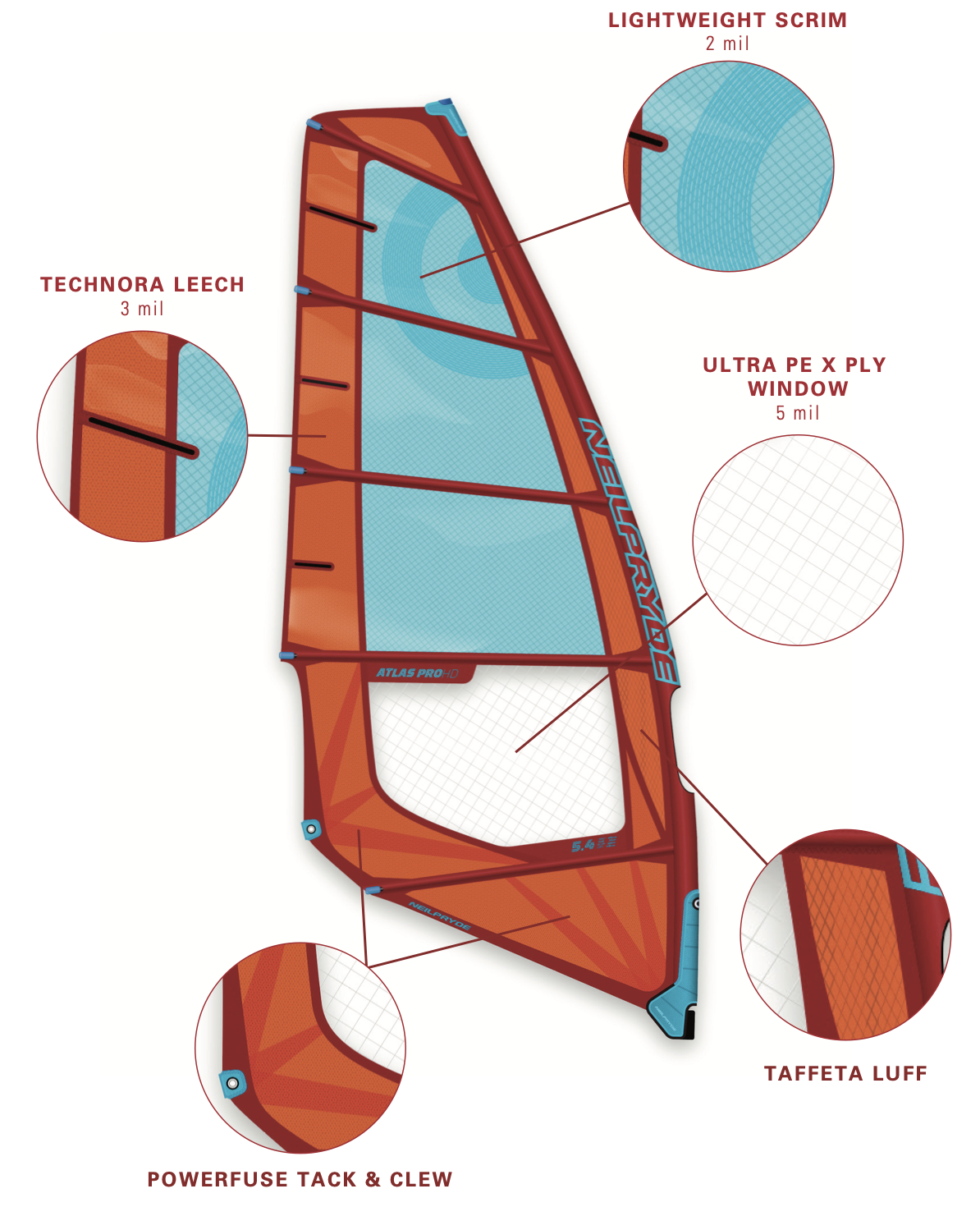

PRO HD

· Laminated Powerfuse Tack and Clew
· Lightweight scrim upper panels
· Technora panels in leech and head of sail
· Rip stop Taffeta X-Ply laminate luff
· Ultra-PE X-Ply window panel
· Our lightest wave sail construction

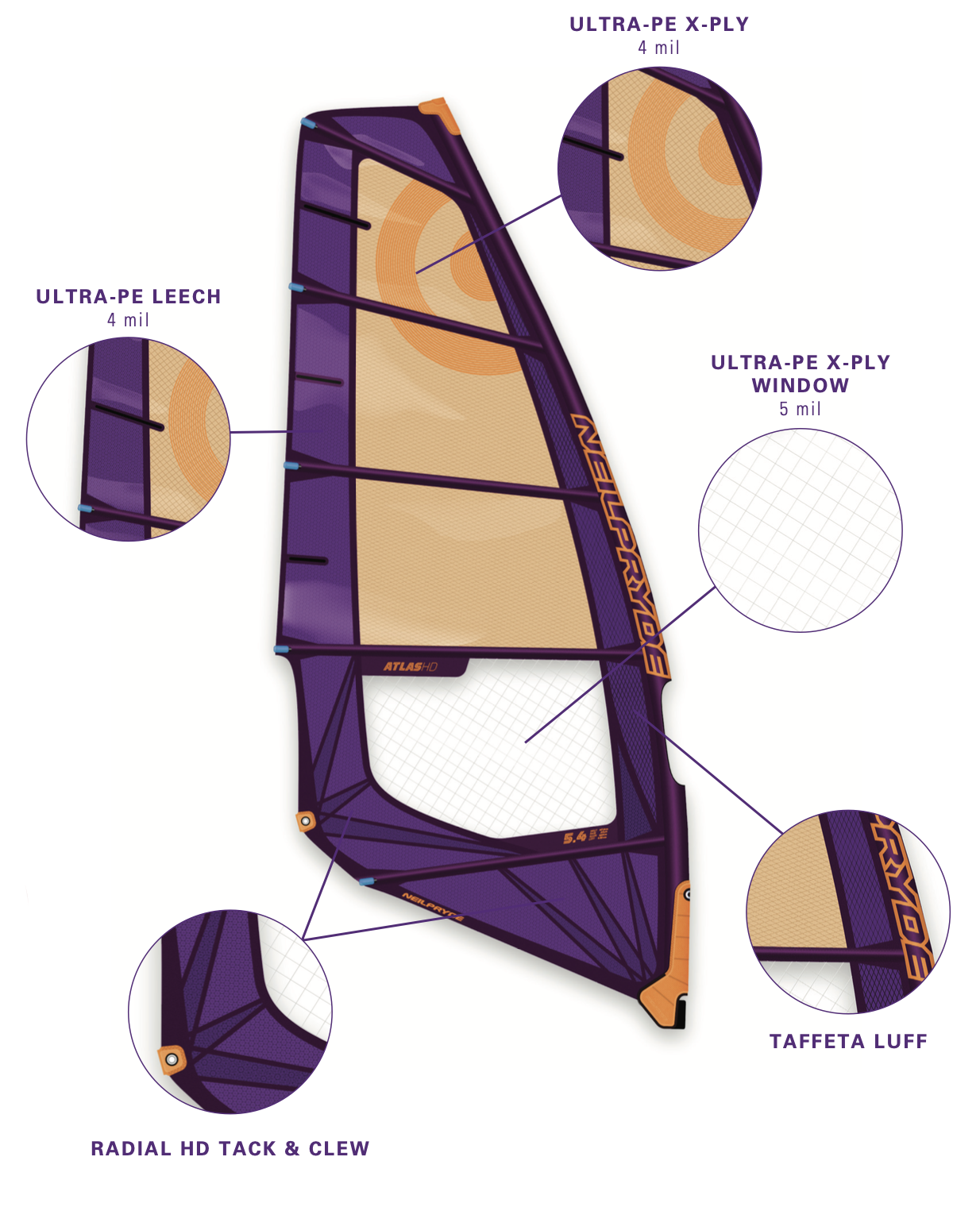

HD

· Stitched Powerfuse Tack and Clew
· Ultra-PE upper panels
· Ultra-PE in leech and head of sail
· Rip stop Taffeta X-Ply laminate luff
· Ultra-PE X-Ply window panel
· Our most affordable wave sail construction

Sail Features

Drive & Acceleration

Tight leech provides power for early planing and upwind performance.

Wide Wind Range

A large tuning range that allows the rider to trim the sail for all conditions, thanks to the combination of a pronounced luff curve in the boom area and a high outhaul tension that stabilizes the profile.

Stability

Greater luff curve than the Combat and Zone to provide ultimate high wind control.

5 Batten Layout

5 batten layout to provide greater stability and lighter feeling.

PRO HD vs hd

PRO HD: Ultimate performance, no expense spared pro construction featuring Powerfuse and Ultra Scrim custom laminated panels with X-Ply center window for added strength and our lightest wave sail experience.

HD: Engineered for strength and economy from the ground up. Featuring Radial HD panels and X-Ply throughout.

PRO

HD

Drag

CHOOSE YOUR CONSTRUCTION

POWERFUSE VS RADIAL HD

powerfuse

Ultimate performance, no expense spared pro construction featuring Powerfuse and Ultra Scrim custom laminated panels.

Radial HD

Engineered for strength and economy from the ground up. Featuring Radial HD panels and X-Ply throughout.

How to Rig Your Wave Sail

SAIL SPECS
